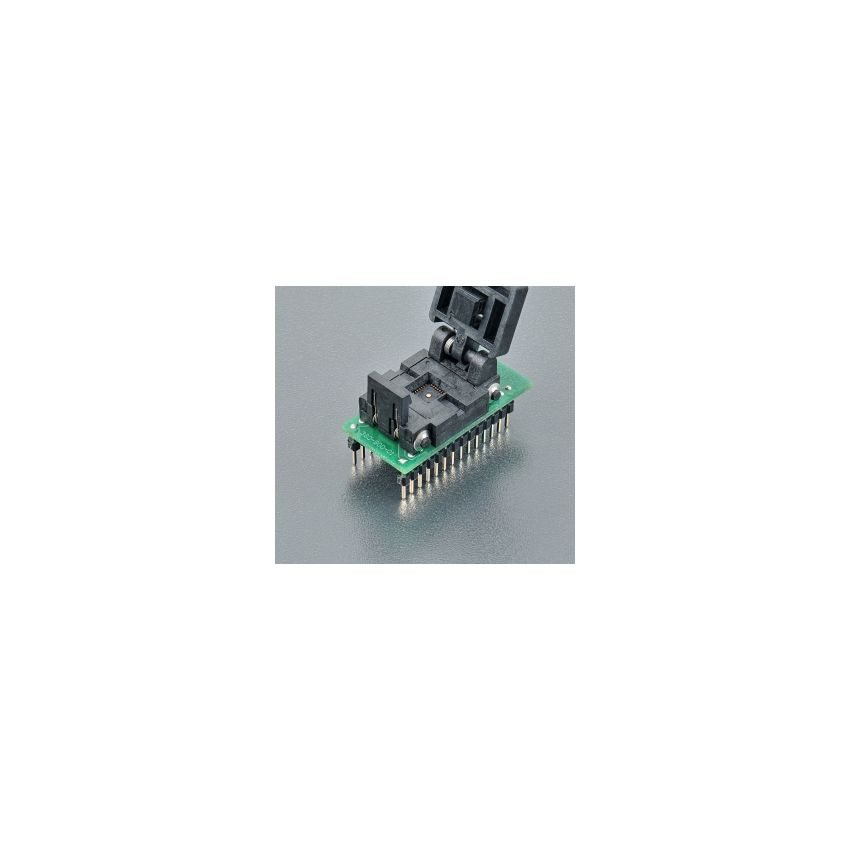

DIL28/QFN28-2 ZIF-CS

The universal adapter with Ord. no. 70-0380 is designed for devices in QFN28/HVQFN28/VFQFN28/MLP28 packages, such as Philips/NXP P89LPC series, Microchip PIC 16xxx, PIC 18xxx, PIC 24xxx, dsPIC series, and other compatible devices. It features a ZIF (Zero Insertion Force) socket with a ClamShell type design, allowing for easy insertion and removal of devices during programming and testing operations.



The bottom board of the adapter features 2 rows of 2x 14 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 300mil. This configuration is designed to match the pinout of QFN28/HVQFN28/VFQFN28/MLP28 packages, ensuring accurate and reliable connections between the adapter and the target device during programming and testing operations.



The ZIF socket on the adapter has a mechanical warranty of 5,000 actuations, providing durability and reliability in professional use. It is designed to withstand repeated actuations without compromising its performance or lifespan, ensuring a long-lasting and dependable solution for programming and testing devices in QFN28/HVQFN28/VFQFN28/MLP28 packages.



The adapter is made in Slovakia using high-quality materials and manufacturing processes, ensuring its quality and performance. The Ord. no. 70-0380 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



Please note that this adapter is designed for devices in QFN28/HVQFN28/VFQFN28/MLP28 packages, and may not be suitable for other packages or devices. It is important to verify the compatibility of the adapter with the specific device you intend to use before proceeding with programming or testing operations.
