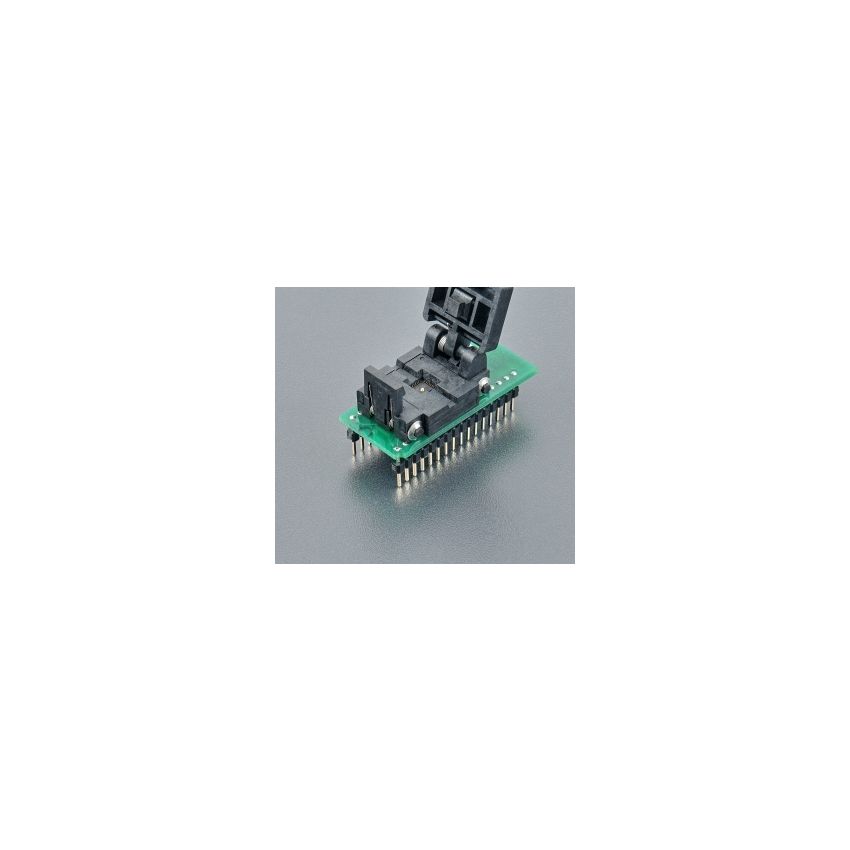

DIL28/QFN28-1 ZIF-CS

The universal adapter is designed for devices in QFN28 (Quad Flat No-Lead 28) or MLP28 (Micro Leadframe Package 28) packages, such as Cygnal C8051Fxxx series, Silicon Laboratories C8051Fxxx series, Zilog Z8Fxxxx series, and similar devices. The adapter is made in Slovakia and identified by Ord. no. 70-0310.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 5,000 actuations. The ZIF socket allows for easy and secure insertion and removal of the QFN28/MLP28 devices during programming or testing operations, without the need for excessive force that could potentially damage the devices or the adapter.



The bottom part of the adapter has 2 rows of 2x14 pins, arranged in a square pattern with a pitch of 0.6x0.6mm (300 mil) between rows. These pins are designed to interface with the 28 pins of the QFN28/MLP28 devices, providing a reliable and efficient solution for programming and testing operations.



The special adapter is made in Slovakia and identified by Ord. no. 70-0310. It features a ZIF QFN28 socket of the ClamShell type and is designed as a universal solution for programming and testing devices in QFN28/MLP28 packages, including Cygnal C8051Fxxx series, Silicon Laboratories C8051Fxxx series, Zilog Z8Fxxxx series, and similar devices.
