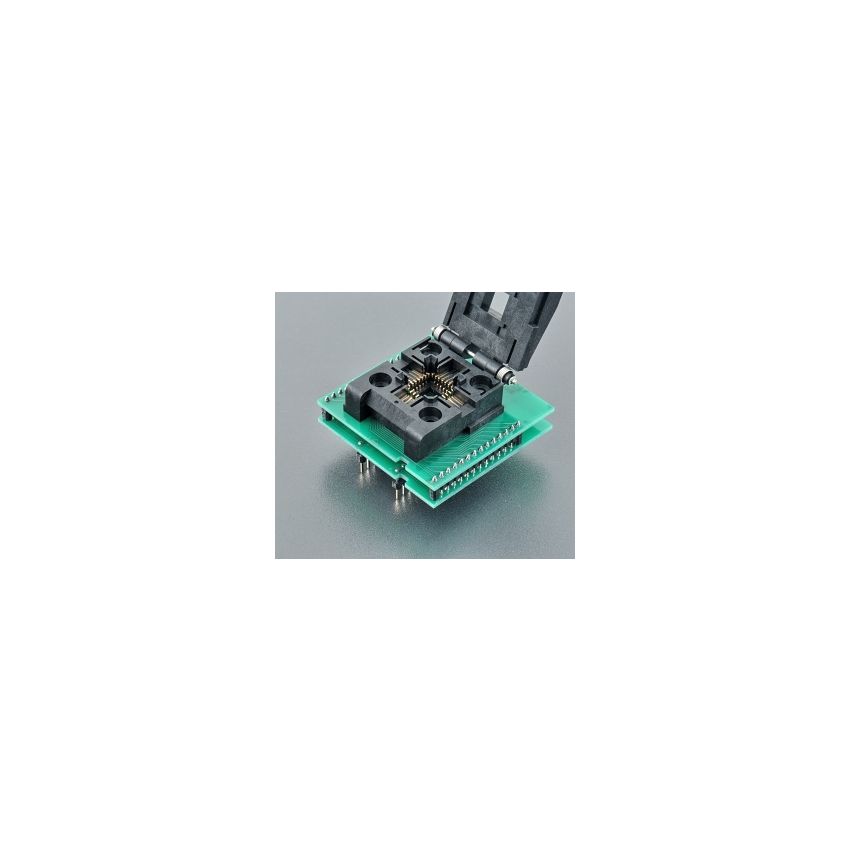

DIL28/PLCC28 ZIF-CS

The universal adapter, identified by Ord. no. 70-0330, is designed for use with devices in PLCC28 packages, such as SPLDs (Simple Programmable Logic Devices), PROMs (Programmable Read-Only Memories), Philips/NXP LPC series, and Zilog Z86xxx series devices. This adapter is specifically designed for mass-production purposes, allowing for efficient and reliable programming and testing of PLCC28 devices.



The ZIF (Zero Insertion Force) socket of this adapter is designed to provide a mechanical warranty of 10,000 actuations, ensuring durability and longevity for repeated use in production environments. The ClamShell type socket allows for easy insertion and removal of PLCC28 devices without the need for excessive force or complicated procedures.



The bottom board of this adapter features 2 rows of 2x14 pins in a square pattern with a pitch of 0.6x0.6mm and a row spacing of 600mil. This configuration provides a reliable and secure connection to PLCC28 devices during programming and testing operations.



Additionally, this universal adapter is designed to support LCC28 packages after modification, providing versatility for different types of devices in mass-production environments. The adapter is made in Slovakia with high-quality materials and manufacturing processes, ensuring its reliability and durability for mass-production applications. It is identified by Ord. no. 70-0330, and is a reliable tool for programming and testing PLCC28 devices in production environments.
