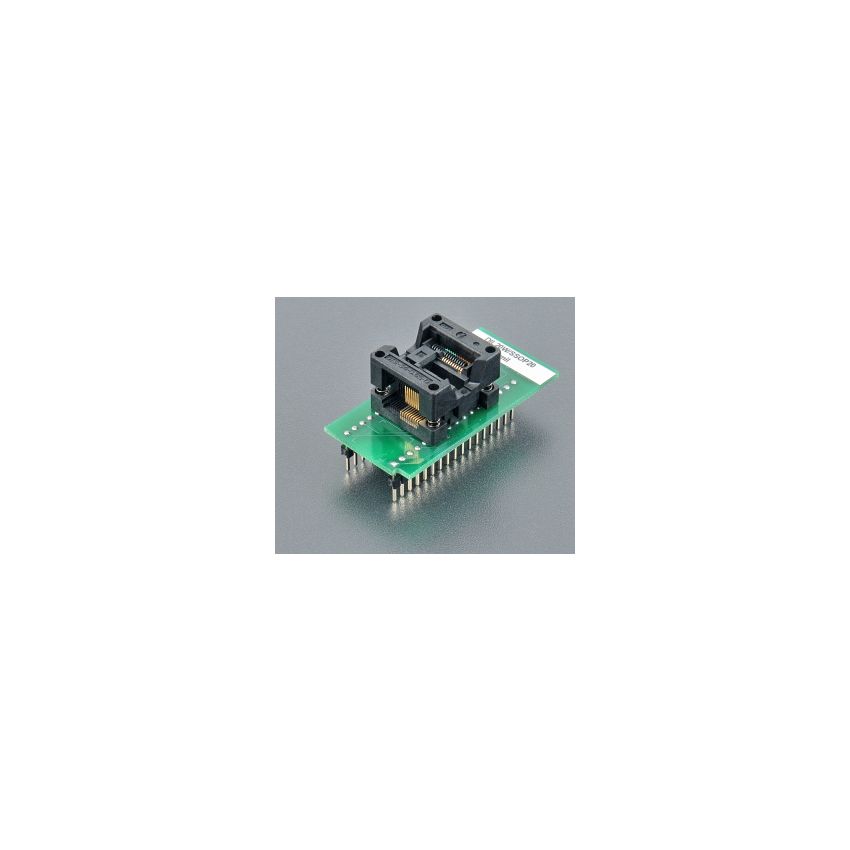

DIL20W/SSOP20 ZIF 200mil

The universal adapter is designed for SSOP20 (Shrink Small Outline Package) devices, such as MDT 1xxxx, 2xxx series, Microchip PIC 16xxx, PIC18xxx, PIC 24xxx, Cypress CY8Cxxxxx series, Zilog Z8Fxxxx, ZGP323xxxxxx, ZLF645xxxxxxx, ZLP12840xxxxx, ZLP323xxxxxxx series, and more. This adapter provides a versatile solution for programming and testing various SSOP20 devices. It is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring durability and performance. The order number for this adapter is 70-0946, which can be used for easy identification and ordering.



The ZIF (Zero Insertion Force) socket of the adapter comes with a mechanical warranty of 10,000 actuations, providing durability for repeated use. The OpenTop type design of the ZIF socket allows for easy insertion and removal of SSOP20 devices, making it convenient for programming and testing purposes.



The bottom board of the adapter features 2x17 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This ensures a reliable connection to SSOP20 devices, enabling accurate operations during programming and testing.
