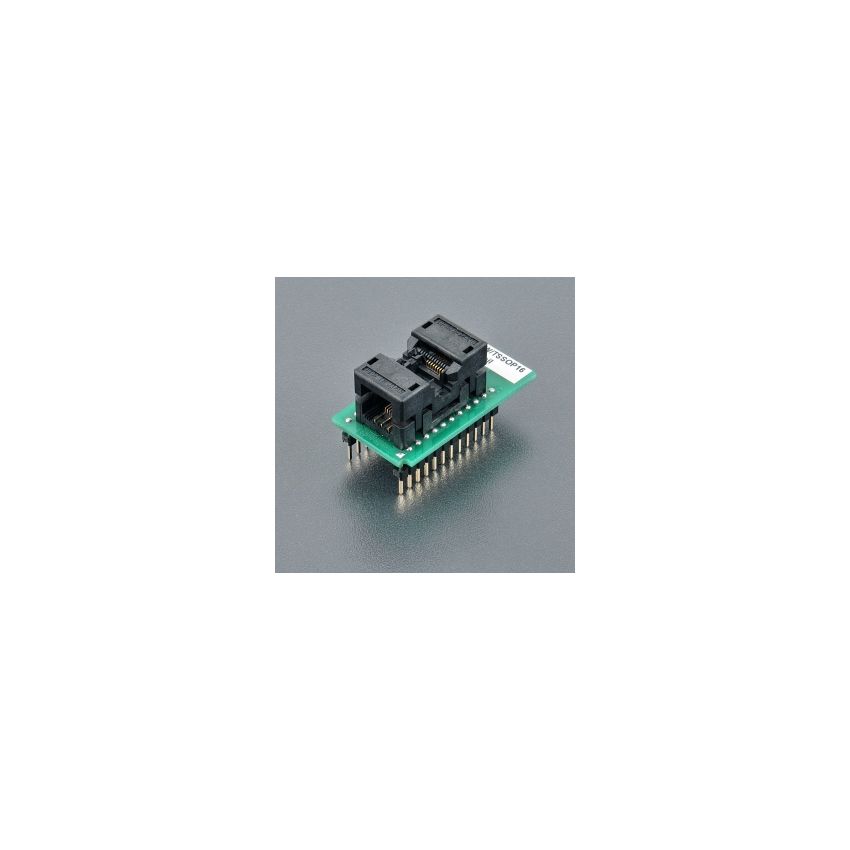

DIL16W/TSSOP16 ZIF 170mil

The universal adapter is designed for devices in SSOP/TSSOP packages with up to 16 pins, including NEC uPD7Fxxxxx series microcontrollers, Philips/NXP LPC series microcontrollers, Motorola/Freescale Semic. HC08 and HCS08 series microcontrollers, Cypress clocks, and other compatible devices. This adapter provides a reliable solution for programming and testing these devices, ensuring efficient and accurate operations.



The ZIF (Zero Insertion Force) socket on the adapter has a mechanical warranty of 10,000 actuations, guaranteeing durability and long-term use. This makes it suitable for repeated programming and testing tasks without compromising performance.



The universal adapter is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring reliability and performance. The order number for this adapter is 70-0913, which can be used for easy identification and ordering.



The ZIF socket on the adapter is of OpenTop type, providing a convenient way to insert and remove devices in TSSOP16 packages. The OpenTop design allows for easy access to the devices, making it user-friendly for programming and testing.



The bottom board of the adapter features 2x12 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This provides a reliable connection to the devices and ensures accurate and efficient operations.
