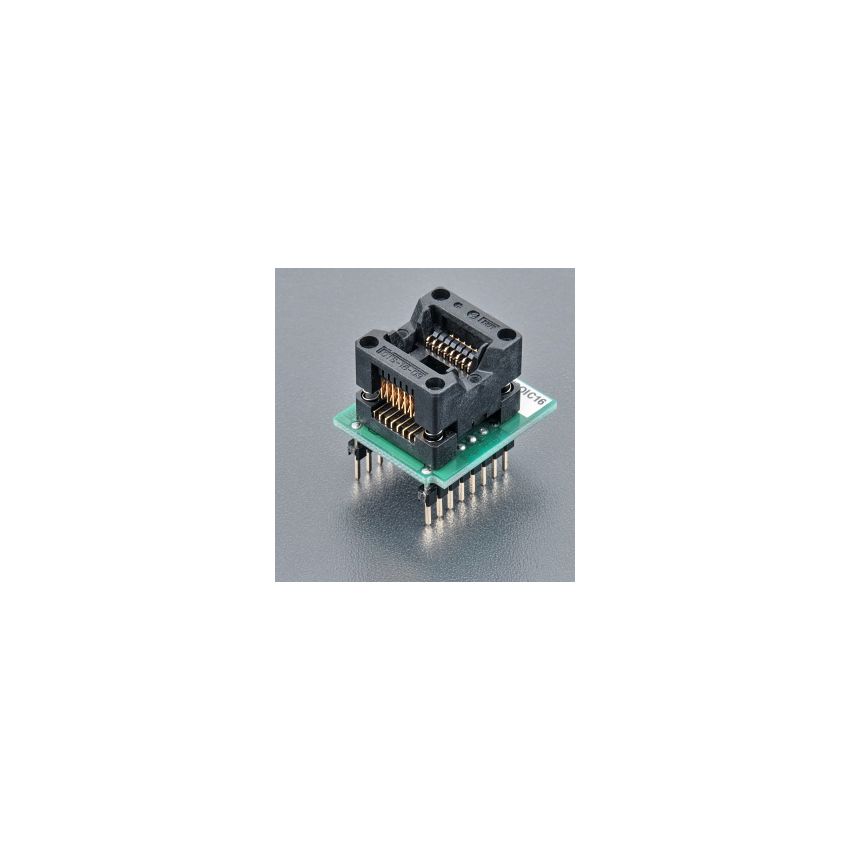

DIL16W/SOIC16 ZIF 150mil

The universal adapter is designed for SOIC (Small Outline Integrated Circuit) devices with up to 16 pins, including serial EEPROMs, STM ST7xxx series, and other similar devices. This adapter provides a versatile solution for programming and testing a wide range of devices in these package types.



The ZIF (Zero Insertion Force) socket on the adapter has a mechanical warranty of 10,000 actuations, ensuring durability and reliability over repeated use. This makes it suitable for long-term use in various programming and testing applications.



The adapter is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring reliability and performance. The order number for this universal adapter is 70-0903, which can be used for easy identification and ordering.



The ZIF socket on the adapter is of OpenTop type, providing a convenient way to insert and remove devices in SOIC packages with up to 16 pins. The OpenTop design allows for easy access to the devices, making it user-friendly for programming and testing.



The bottom board of the adapter features 2x8 pins arranged in a square pattern with a pitch of 0.6x0.6mm, and rows spacing of 600mil. This provides a reliable connection to the devices and ensures accurate and efficient operations.
