DIL16/SOIC16-1 ZIF 170mil

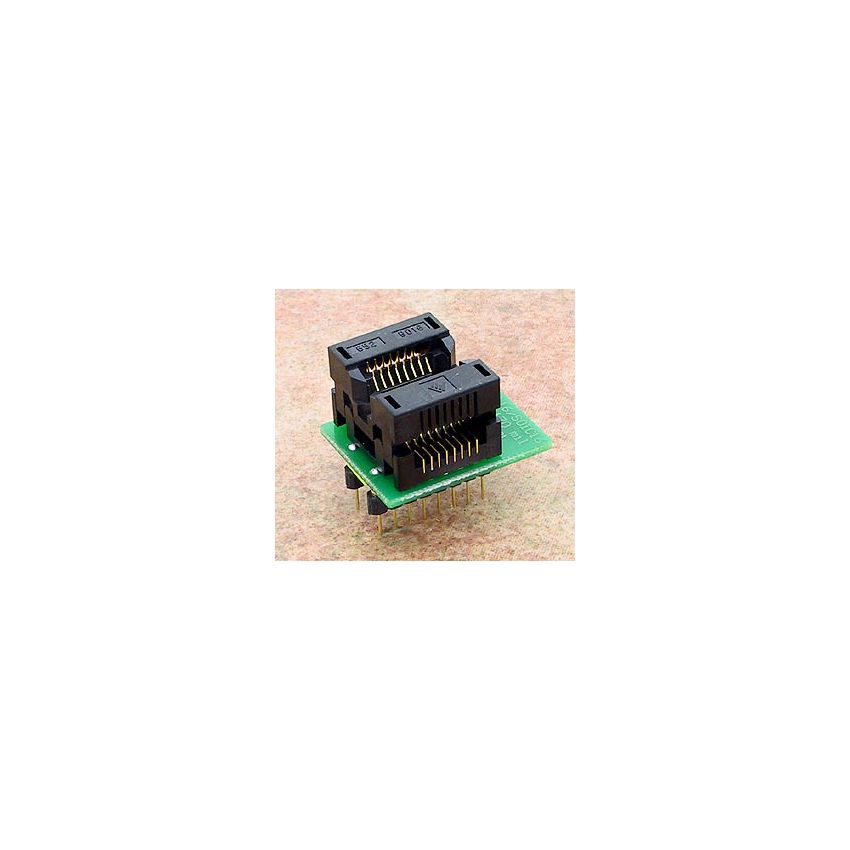

The universal adapter with Ord. no. 70-0406 is designed for use with 170mil SOIC (Small Outline Integrated Circuit) devices with up to 16 pins. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during repeated usage.



The ZIF socket on this adapter is specifically designed for SOIC16 packages and features an OpenTop type design, which allows for easy and secure insertion and removal of the target device during programming or testing operations. The ZIF socket is designed to provide a reliable electrical connection without risking damage to the device or the adapter.



The bottom board of the adapter features 2 rows of 2x 8 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spacing of 300mil. These pins are designed to connect with the corresponding pins on the target SOIC device, providing a reliable electrical connection for programming or testing operations.



The adapter is made in Slovakia, ensuring high-quality manufacturing processes and materials. The Ord. no. 70-0406 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the 170mil SOIC devices with up to 16 pins with the ZIF socket and the overall adapter design before proceeding with programming or testing operations.
