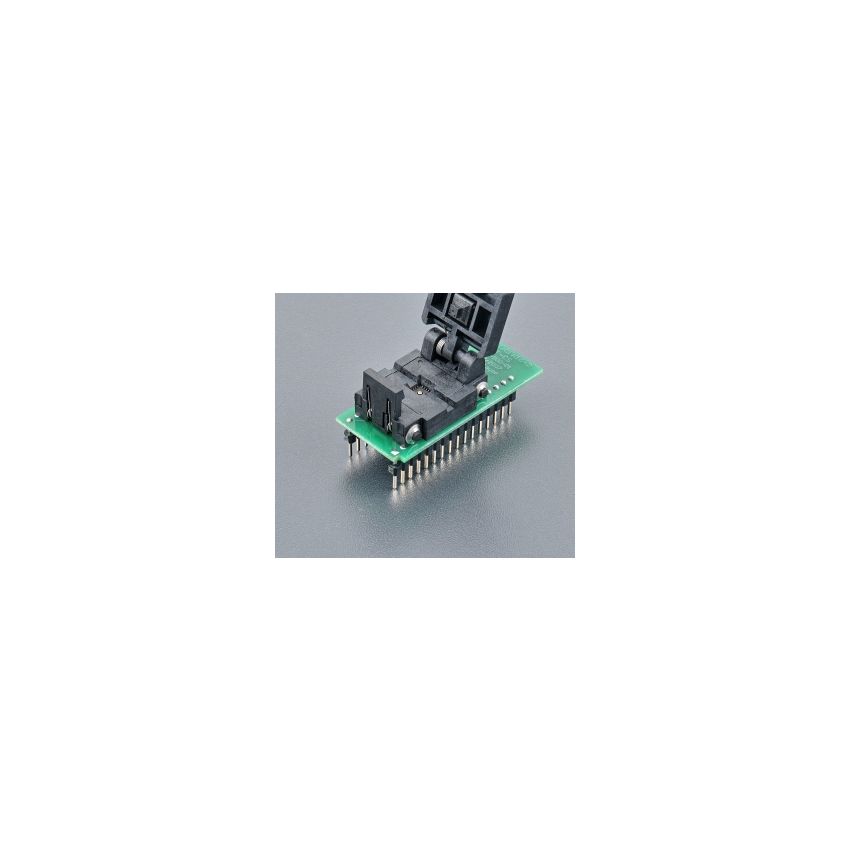

DIL16/QFN16-2 ZIF-CS

The universal adapter with order number 70-0688 is designed for devices in a QFN16/HVQFN16 package, such as TI MSP430 series and Microchip PIC 16xxx series devices. The adapter features a high-quality ZIF (Zero Insertion Force) socket with a mechanical warranty of 5,000 actuations, ensuring reliable and durable operation.



The ZIF socket on the adapter is of QFN16 type and is of ClamShell design, providing easy and secure insertion and removal of devices during programming and testing. The bottom board of the adapter features 2 rows of 2x8 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is compatible with QFN16/HVQFN16 packages of various devices, including TI MSP430 series and Microchip PIC 16xxx series.



The adapter is made in Slovakia to high manufacturing standards, ensuring quality and reliability. It is designed as a versatile solution for programming and testing devices in QFN16/HVQFN16 packages, with a mechanical warranty of 5,000 actuations for the ZIF socket. The order number for this universal adapter is 70-0688.
