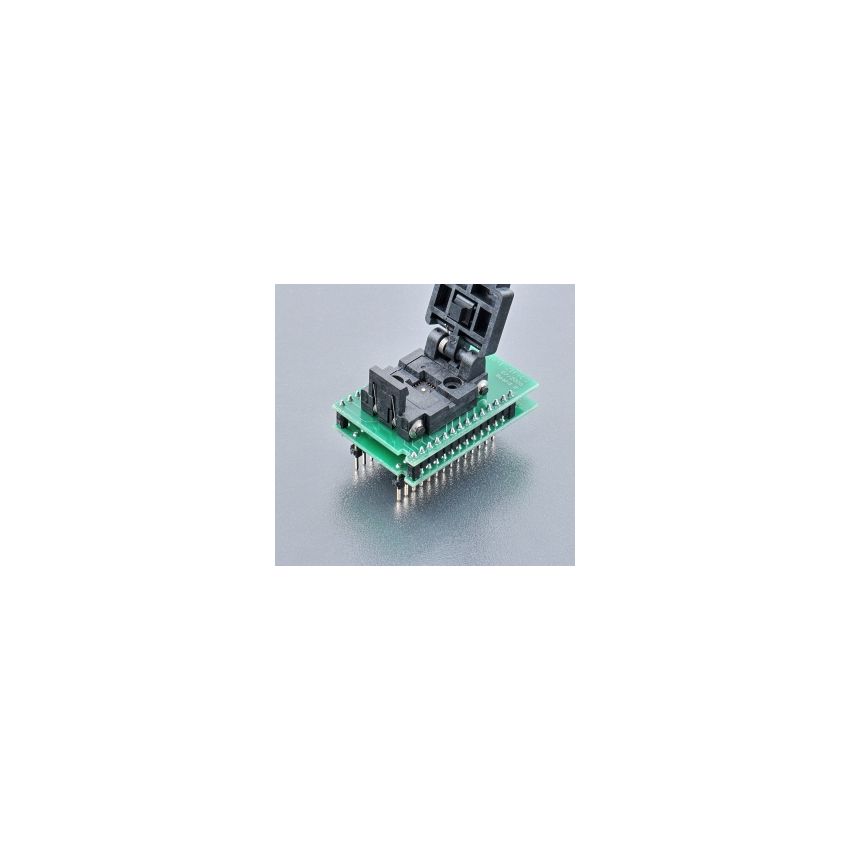

DIL16/QFN16-1 ZIF-CS

The universal adapter with Ord. no. 70-0472 is designed for devices in a QFN16 (Quad Flat No-Lead), MLP16 (Micro Leadframe Package), or MLF16 (Micro Leadframe Package) package, such as Freescale MC9S08 microcontrollers. This adapter features a ZIF (Zero Insertion Force) socket with a ClamShell type design, allowing for easy insertion and removal of devices during programming or testing.



The ZIF socket on this adapter has an operating (mechanical) warranty of 5,000 actuations, ensuring reliable performance during repeated usage. It is designed to provide a secure and reliable connection to the target devices, allowing for efficient communication and operation.



The bottom of the adapter features 2 rows of 2x14 pins, arranged in a square pattern with a spacing of 0.6x0.6mm and a row spacing of 600mil. These pins are optimized for devices in QFN16/MLP16/MLF16 packages and ensure proper alignment and connection between the adapter and the target devices.



The adapter is made in Slovakia and meets high-quality standards for reliable operation. The Ord. no. 70-0472 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to follow the manufacturer's guidelines for proper usage of the adapter and the target devices to ensure correct functionality and avoid potential damage to the devices or the adapter.
