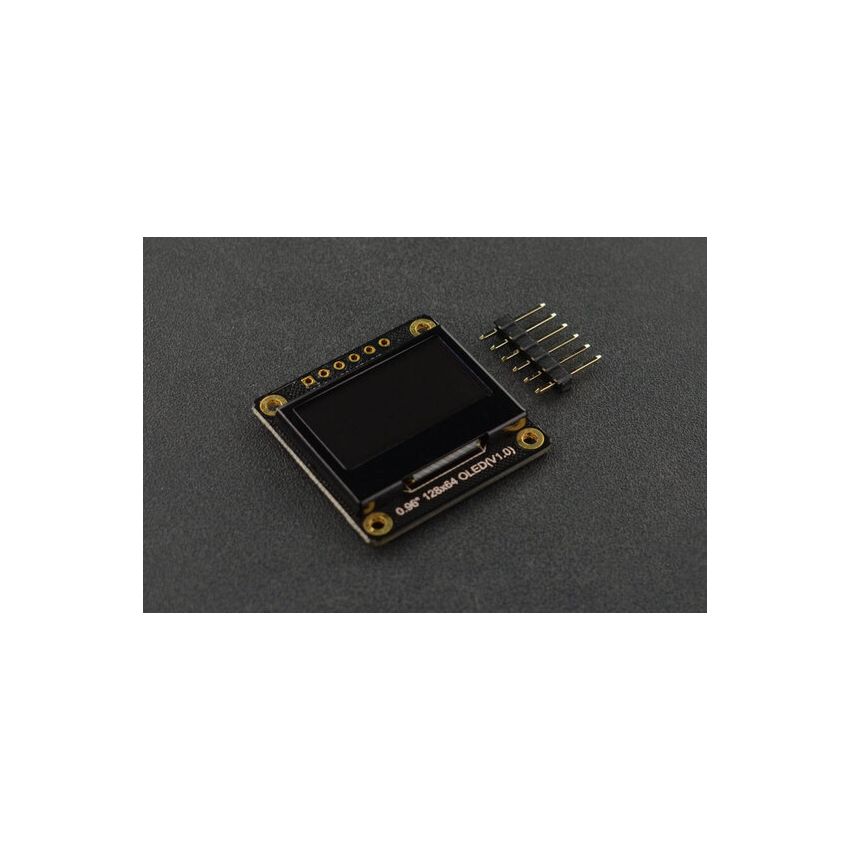

This 0.96” OLED display module uses the SSD1306 drive chip, has 128x64 self-illumiN/Ating white pixels, and adopts two communication methods: SPI/ I2C, I2C by default. With its high contrast, simple wiring and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.
This 0.96” OLED display module supports both 3.3V and 5V. The display module adopts a high-contrast, low-power OLED display. It is compatible with controllers such as Arduino UNO, LeoN/Ardo, ESP32/ESP8266, FireBettle-M0 and so on. InterN/Al power-on reset processing, I2C communication methods, so that your welding line will be more convenient and simpler. If you want to change I2C communication to SPI, you just need to change the resistor position. In addition, the display is in an aluminum frame package that protects the screen from damage, and also prevents scratches caused by the glass edge of the screen.

Features:

Self-illumiN/Ating OLED display
Controllable pixels and low power consumption
I2C/SPI communication, I2C in default
Supports power-on reset

Applications:

Thermometer
Desktop weather display
Kitchen weighing machine
Air quality detector
Mini Game consoles
Wearable display

Specifications:

Operating voltage: 3.3V to 5V
Color: white pixels
Number of pixels: 128 columns x 64 rows
Interface: I2C (in default) / SPI
I2C address: 0x3C
Drive chip: SSD1306
Brightness: 180 (Typ) cd/m2
Full-screen lighting power: approx. 24mA*3.3V/5V(I2C; approx. 27mA*3.3V/5V(SPI)
Full-screen off power consumption: approx. 2mA*3.3V/5V(I2C); approx. 2.87mA*3.3V/5V(SPI)
Operating temperature: -30°C to 70°C
Display area: 21.744 x 10.864(mm) / 0.86”x 0.42”
Size: 30.00x30.00 mm / 1.18”x 1.18”
Weight: 4.2 g
