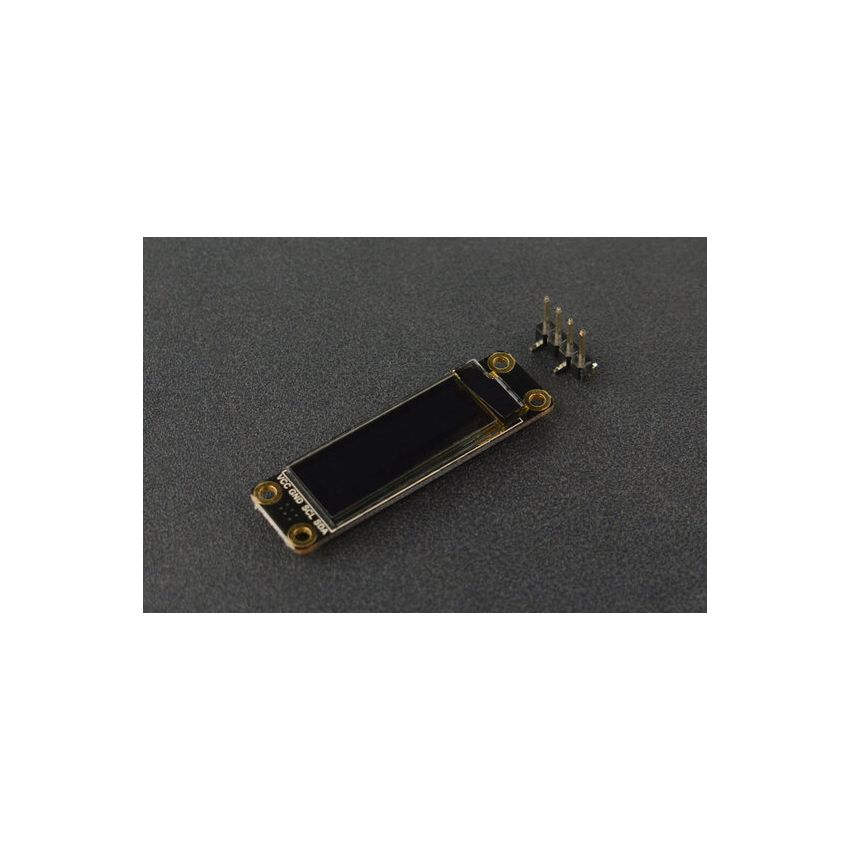

This OLED display module uses the SSD1306 drive chip, has 128x32 self-illumiN/Ating white pixels, and adopts the back chip-mounting pad design. Small size, the length is 41mm and the width is only 12mm. With its small size, simple wiring, and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.
The display module adopts a high-contrast, low-power OLED display. Full-screen lighting consumes approximately 25mA (3.3V) 25mA (5V) and full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V). It is compatible with controllers such as Arduino UNO, LeoN/Ardo, ESP32/ESP8266, FireBettle-M0, and so on. InterN/Al power-on reset processing, I2C communication methods and the chip-mounting pad, so that your welding line will be more convenient and simpler. The module has an ultra-N/Arrow PCB design that is more flexible to match more applications.

Features:

Chip-mounting pad
Self-illumiN/Ating OLED display
Controllable pixels and low power consumption
Supports power-on reset

Applications:

Thermometer
Desktop weather display
Kitchen weighing machine
Air quality detector
Mini Game consoles
Wearable display

Specifications:

Operating voltage: 3.3V to 5V
Color: White pixels
Number of pixels: 128 columns x 32 rows
Interface: I2C
Drive chip: SSD1306
Brightness: 180 (Typ) cd/m2
Full-screen lighting power: approx. 25mA (3.3V) 25mA (5V)
Full-screen off power consumption: approx. 2mA (3.3V) 2mA (5V)
Operating temperature: -30°C to 70°C
Display area: 22.38 x 5.58 mm / 0.88”x 0.22”
Mounting hole diameter: 2 mm
Size: 41x12 mm / 1.61”x 0.47”
Weight: 2.2 g
