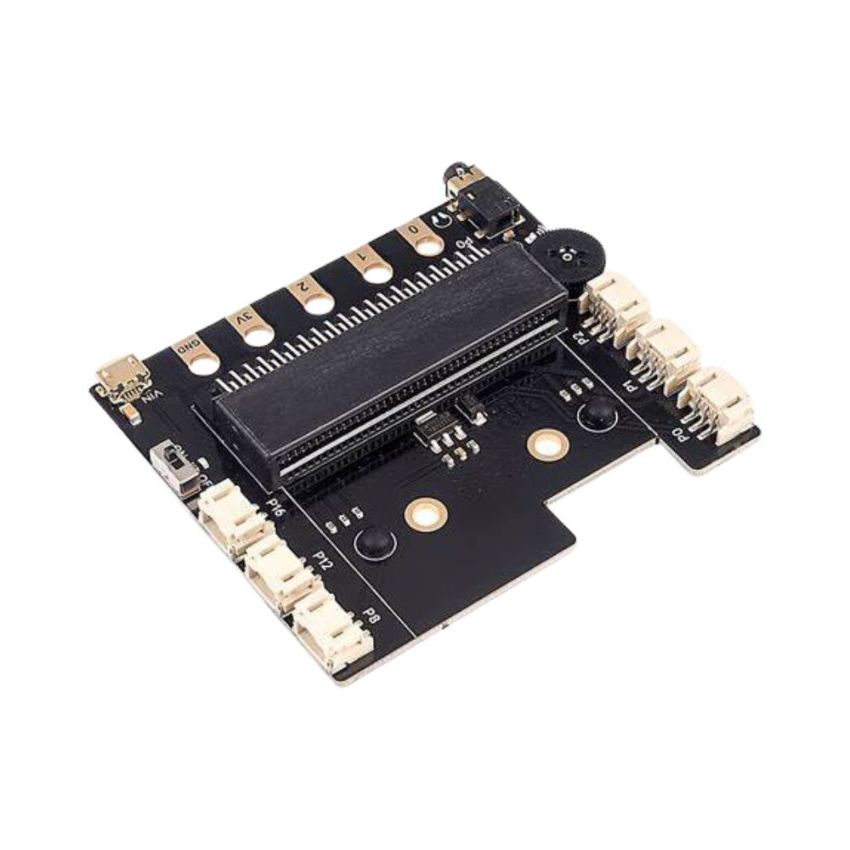

Micro:bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY digital games, interactive projects, and robotics.
- The expansion board comes with 6 fool-proof 3-Pin sockets, compatible with hundreds of DFRobot’s Boson and Gravity modularized electronic blocks, covering most popular digital and analog sensors and actuators, supporting sound, light, and motion interaction.
- Moreover, the expansion board adds a Gravity: HuskyLens interface and an IIC interface. To ensure a steady current supply for these peripherals, the expansion board can be powered externally through the Micro-USB power port.

FEATURES

- 3-Pin fool-proof connector x 6
- IIC connector x1
- Gravity: HuskyLens connector x1
- External power port and ON/OFF switch
- DFRobot Gravity and Boson electronic module compatible

SPECIFICATION:

- MicroUSB Power Port Voltage：5V
- PH2.0 Input/output Voltage: 3.3V
- Input/output ring Voltage: 3.3V
- HuskyLens input Voltage：5V
- Maximum Current: 500mA
- Working temperature: 0-85 ℃

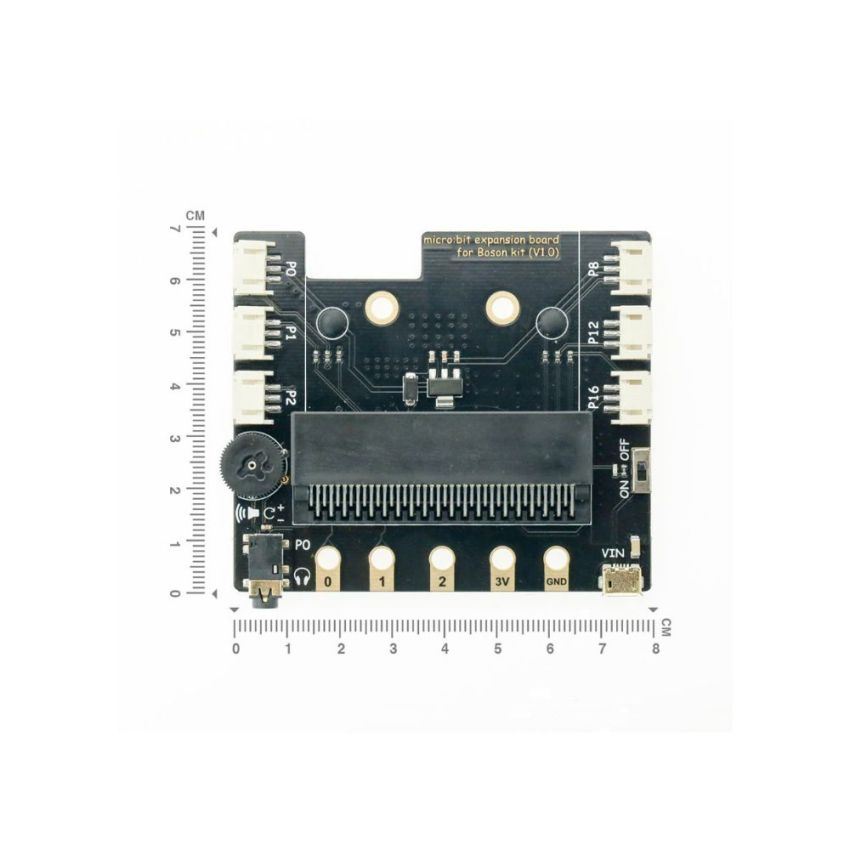

- Dimension 80 * 70 mm / 3.15 * 2.76
- Weight: 48g
