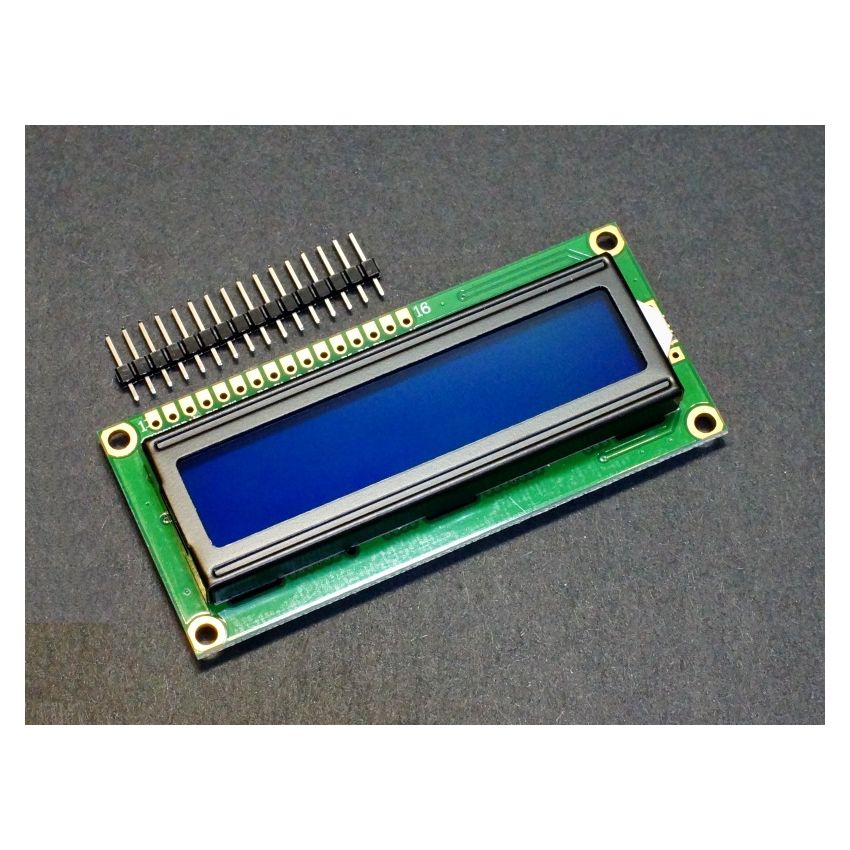

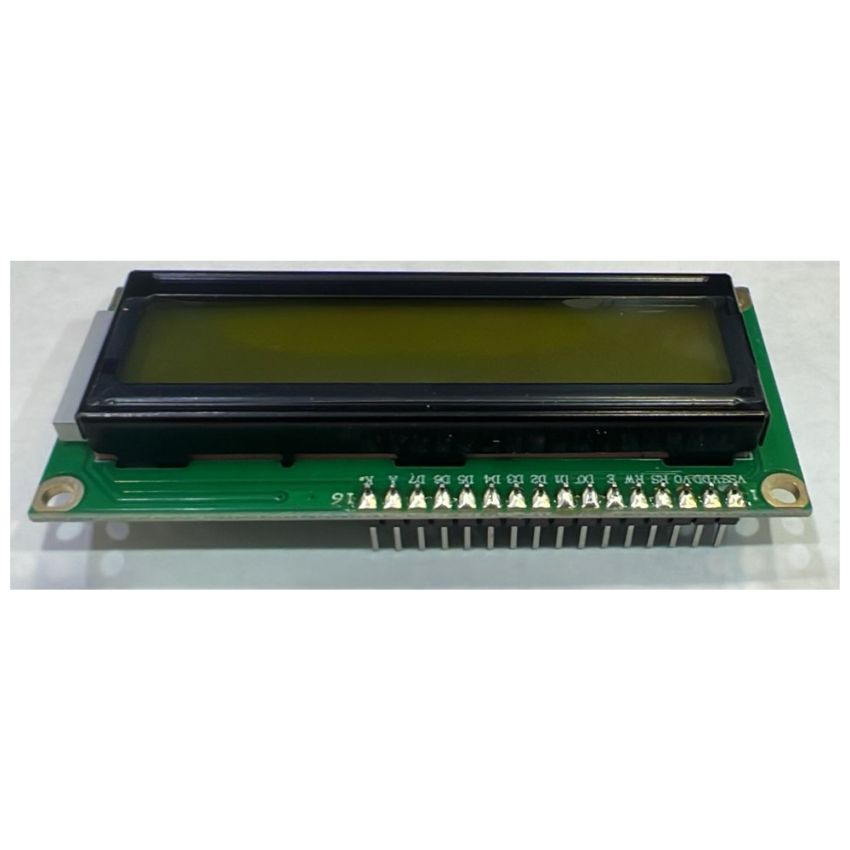

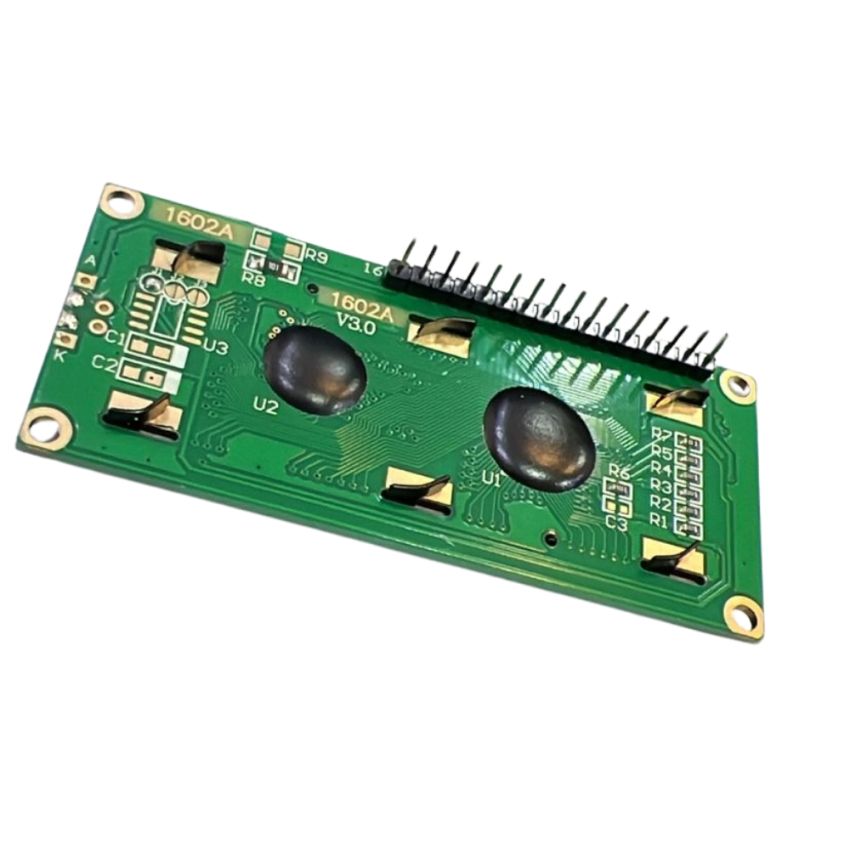

1602A LCD Display Module – 16x2 Characters, HD44780 Compatible

The 1602A LCD Display Module is a widely used alphanumeric display that supports 16 characters x 2 lines, making it an ideal solution for projects requiring simple and clear text output. Built with an HD44780-compatible controller, this display can be easily interfaced with Arduino, Raspberry Pi, and other microcontrollers.

Its compact design, low power consumption, and ease of use make it popular for DIY electronics, embedded systems, and automation projects. The display supports a variety of commands for cursor positioning, scrolling, and character manipulation, allowing flexible control.

With a standard 16-pin interface, it can operate in both 4-bit and 8-bit modes, providing adaptability for different projects. The module comes with a backlight for readability in low-light environments and is suitable for applications such as measurement instruments, clocks, calculators, and user interface displays in embedded systems.


Key Features:

• 16x2 characters alphanumeric display for simple text output.
• HD44780-compatible controller, ensuring broad compatibility.
• Supports both 4-bit and 8-bit parallel interface modes.
• Backlight included for better visibility in various lighting conditions.
• Low power consumption, making it suitable for battery-powered applications.
• Widely used in Arduino, Raspberry Pi, and microcontroller projects.


Additional Details:

• Display Type: LCD Character Display
• Characters: 16x2 (32 total characters)
• Controller: HD44780 or compatible
• Operating Voltage: 5V DC
• Interface: Parallel (4-bit or 8-bit)
• Backlight: Yes
• Module Dimensions: ~80mm x 36mm
• Viewing Area: ~64.5mm x 14mm
