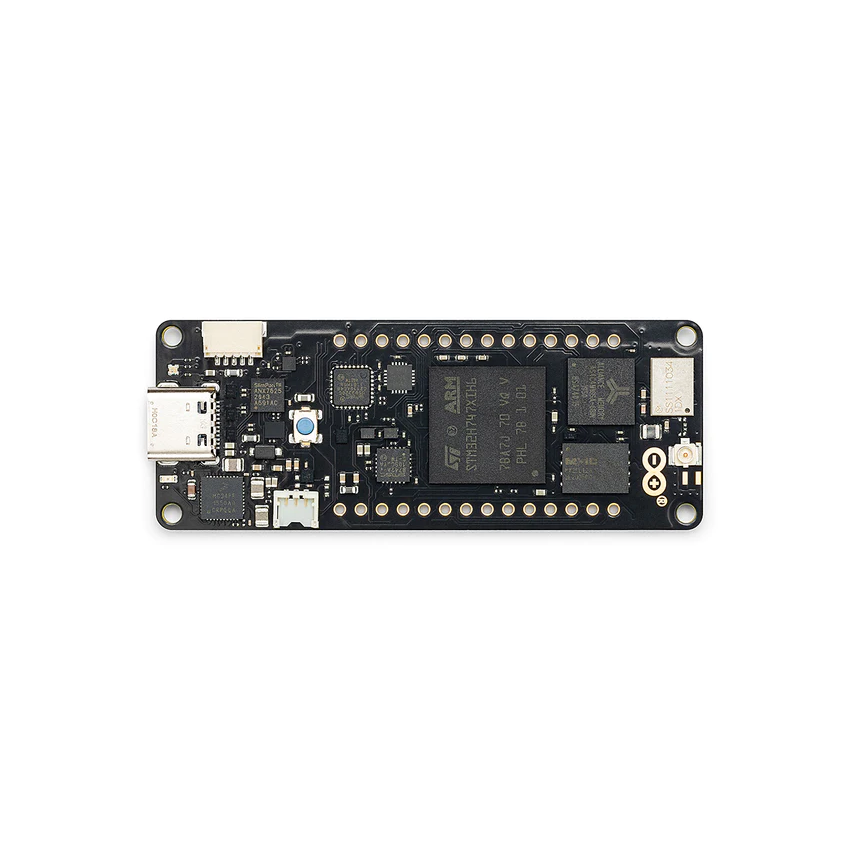

PORTENTA H7

Arduino Nano Every

The Arduino Nano Every is a compact, 5V-compatible board, measuring only 45x18mm, ideal for projects requiring a microcontroller in a small form factor. It serves as an upgrade to the traditional Nano, featuring a more powerful processor, making it suitable for applications such as wearables, robotics, and smaller components of larger projects.

Product Features

• 5V Compatibility: Smallest form factor with 5V compatibility
• Enhanced Processing Power: Powered by the ATMega4809 processor, allowing for larger programs and more variables than the Arduino Uno
• Applications: Wearables, low-cost robotics, electronic instruments, and control of smaller parts in larger projects
• Technical Specifications
• Microcontroller: ATMega4809
• Operating Voltage: 5V
• VIN Range: 7-21V
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA
• Clock Speed: 20MHz
• Flash Memory: 48KB
• SRAM: 6KB
• EEPROM: 256 bytes
• PWM Pins: 5 (D3, D5, D6, D9, D10)
• UART/SPI/I2C Interfaces: 1 each
• Analog Input Pins: 8 (ADC 10-bit)
• Analog Output: Only through PWM (no DAC)
• External Interrupts: All digital pins
• LED_BUILTIN: Pin 13
• USB: Uses ATSAMD11D14A
• Dimensions: 45 x 18 mm
• Weight: 5 g (with headers)
