ABX00027 NANO 33 IoT BOARD

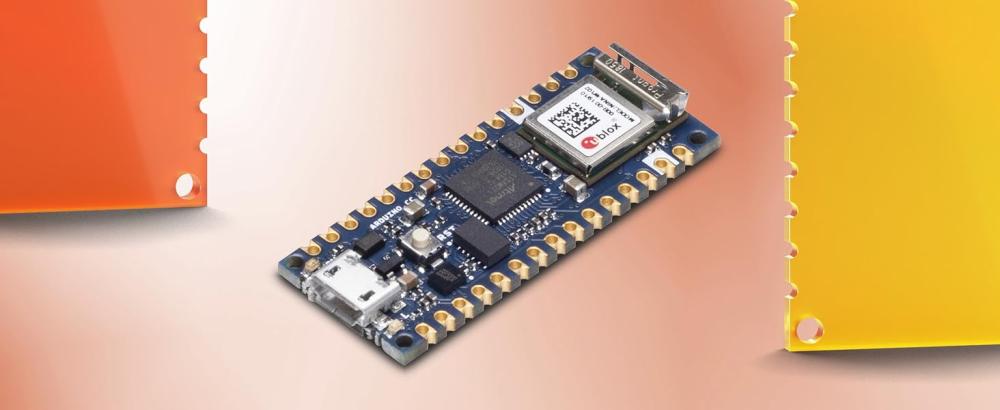

Arduino Nano 33 IoT

The Arduino Nano 33 IoT is a compact, affordable, and powerful board designed for Internet of Things (IoT) applications. It’s an excellent choice for upgrading existing devices or building new connected projects, whether you’re creating a home sensor network, a WiFi-enabled device, or a Bluetooth® Low Energy solution for mobile data transmission.

WiFi & Arduino IoT Cloud

The Nano 33 IoT connects easily to WiFi networks and can even operate as an Arduino Access Point. It supports seamless integration with popular cloud platforms, including Arduino IoT Cloud, Blynk, IFTTTT, AWS IoT Core, Microsoft Azure, and Firebase, making it easy to build scalable and connected solutions.

Bluetooth® & Bluetooth® Low Energy

This board functions as both a Bluetooth® and Bluetooth® Low Energy client and host, enabling reliable wireless communication between devices for a wide range of IoT use cases.

Specification:

• Microcontroller: SAMD21 Cortex®-M0+ 32-bit low-power ARM MCU
• Radio Module: u-blox NINA-W102
• Secure Element: ATECC608A
• Operating Voltage: 3.3 V
• Input Voltage (limit): 21 V
• DC Current per I/O Pin: 7 mA
• Clock Speed: 48 MHz
• Flash Memory: 256 KB
• SRAM: 32 KB
• EEPROM: None
• Digital I/O Pins: 14
• PWM Pins: 11
• Communication Interfaces: 1 × UART, 1 × SPI, 1 × I2C
• Analog Input Pins: 8
• Analog Output Pins: 1
• External Interrupts: Available on all digital pins
• IMU: LSM6DS3
• Dimensions: 45 × 18 mm
• Weight: 5 g (with headers)
