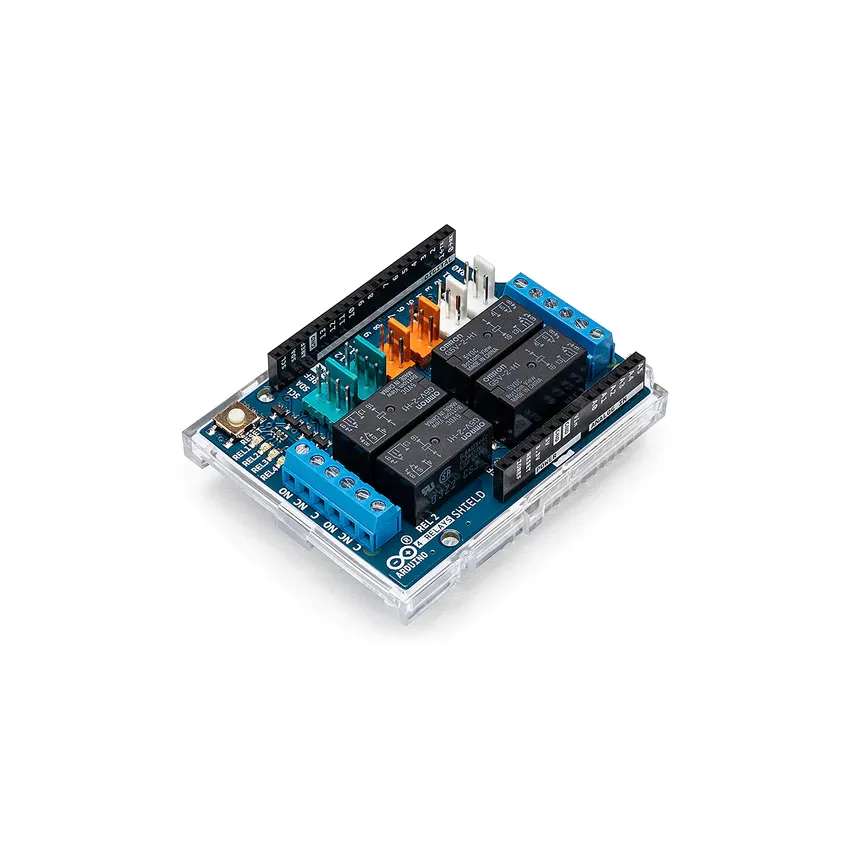

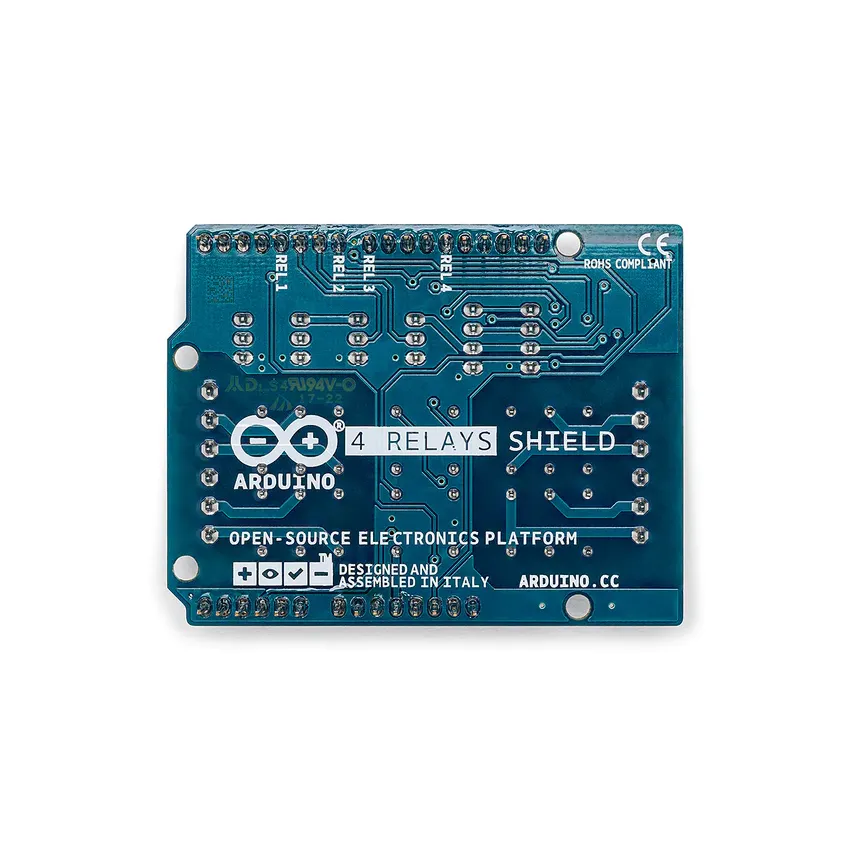

A000110 , Arduino 4 Relays Shield
A000110 , Arduino 4 Relays Shield
A000110 , Arduino 4 Relays Shield

A000110 , Arduino 4 Relays Shield

SKU
DEDB0012
Part Number
A000110
Brand:
Arduino
Categories:
Development Boards & Evaluation Tools, Development Boards, Shields & Expansion Boards
AED 110.00
Be the first to review this product
In stock
Add to Wish List
Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

Product Features
  • High-Power Control: Allows Arduino to manage high-power loads beyond standard IO capacity
  • 4-Relay Configuration: Each relay with changeover (NO/NC) contacts for flexible load management
  • LED Indicators: Shows status for each relay
Technical Specifications
  • Thinker Kit Interface: 2x TWI, 2x OUT, 2x IN
  • Interface with Arduino Board: DIO
  • Relays: 4 (60W each)
  • Operating Voltage: 5V
  • Current Requirements: 140 mA (35 mA per relay when all are active)
  • PCB Dimensions: 53 x 68.5 mm
  • Weight: 0.044 kg
Electrical Specifications
  • Coil Current Consumption: 140 mA (all relays on)
  • Max Current per Contact: 2A @ 30V DC
  • Max Load Voltage: 48V
  • Max Switching Capacity: 60W
Power and Connections
  • Power: Supplied by the base Arduino board via the 5V and 3.3V pins

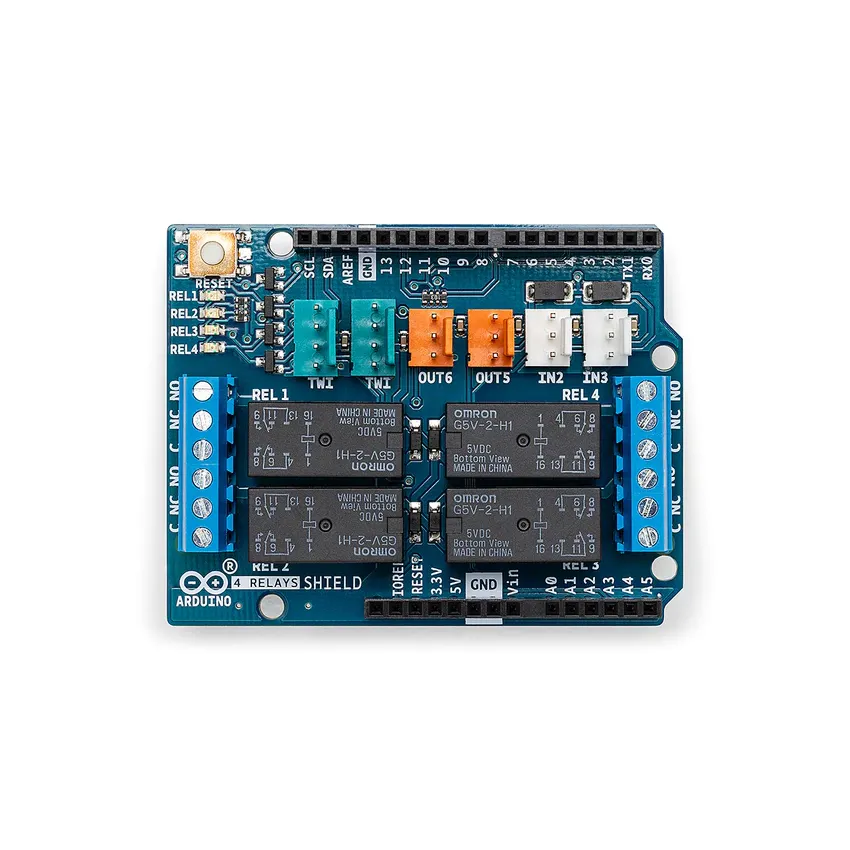

  • Relay Control Pins:
    • Relay 1: Arduino Pin 4
    • Relay 2: Arduino Pin 7
    • Relay 3: Arduino Pin 8
    • Relay 4: Arduino Pin 12
TinkerKit I/O and Communication Ports
  • TinkerKit Inputs: IN2 and IN3 (routed to Arduino A2 and A3 analog inputs)
  • TinkerKit Outputs: OUT5 and OUT6 (connected to Arduino PWM outputs on pins 5 and 6)
  • TinkerKit TWI Connectors: 4-pin connectors for TWI interface, enabling chaining of TWI devices
