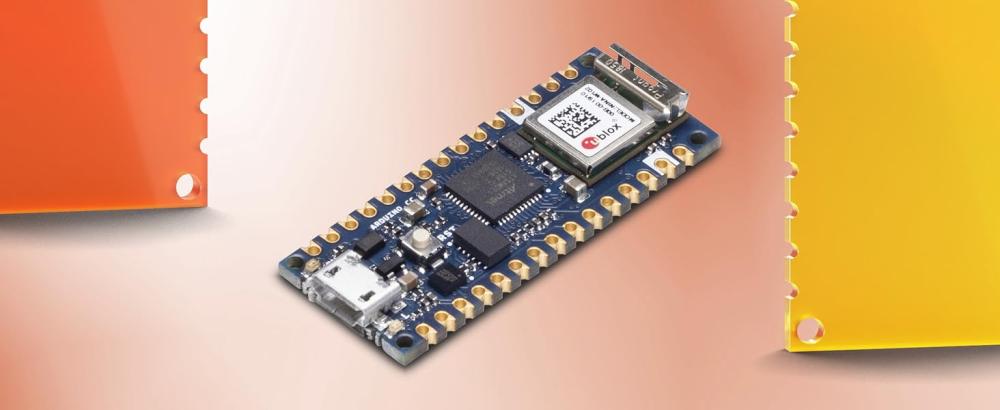

ABX00032 NANO 33 IoT BOARD WITH HEADERS

<p>The Arduino Nano 33 IoT is an affordable and user-friendly platform for enhancing existing devices and developing new Internet of Things (IoT) applications. Ideal for building sensor networks and Bluetooth® Low Energy devices, this board provides a comprehensive solution for various basic IoT scenarios.</p> <h2>Technical Specifications</h2> <ul> <li>Microcontroller: SAMD21 Cortex®-M0+ 32-bit low power ARM MCU</li> <li>Radio Module: u-blox NINA-W102</li> <li>Secure Element: ATECC608A</li> <li>Operating Voltage: 3.3V</li> <li>Input Voltage (limit): 21V</li> <li>DC Current per I/O Pin: 7 mA</li> <li>Clock Speed: 48MHz</li> <li>CPU Flash Memory: 256KB</li> <li>SRAM: 32KB</li> <li>EEPROM: None</li> <li>Digital Input/Output Pins: 14</li> <li>PWM Pins: 11 (2, 3, 5, 6, 9, 10, 11, 12, 16/A2, 17/A3, 19/A5)</li> <li>UART: 1</li> <li>SPI: 1</li> <li>I2C: 1</li> <li>Analog Input Pins: 8 (ADC 8/10/12 bit)</li> <li>Analog Output Pins: 1 (DAC 10 bit)</li> <li>External Interrupts: All digital pins (all analog pins can also be used as interrupt pins, but will have duplicated interrupt numbers)</li> <li>LED_BUILTIN: 13</li> <li>USB: Native in the SAMD21 Processor</li> <li>IMU: LSM6DS3</li> <li>Dimensions: Length 45 mm x Width 18 mm</li> <li>Weight: 5 g (with headers)</li> </ul>
