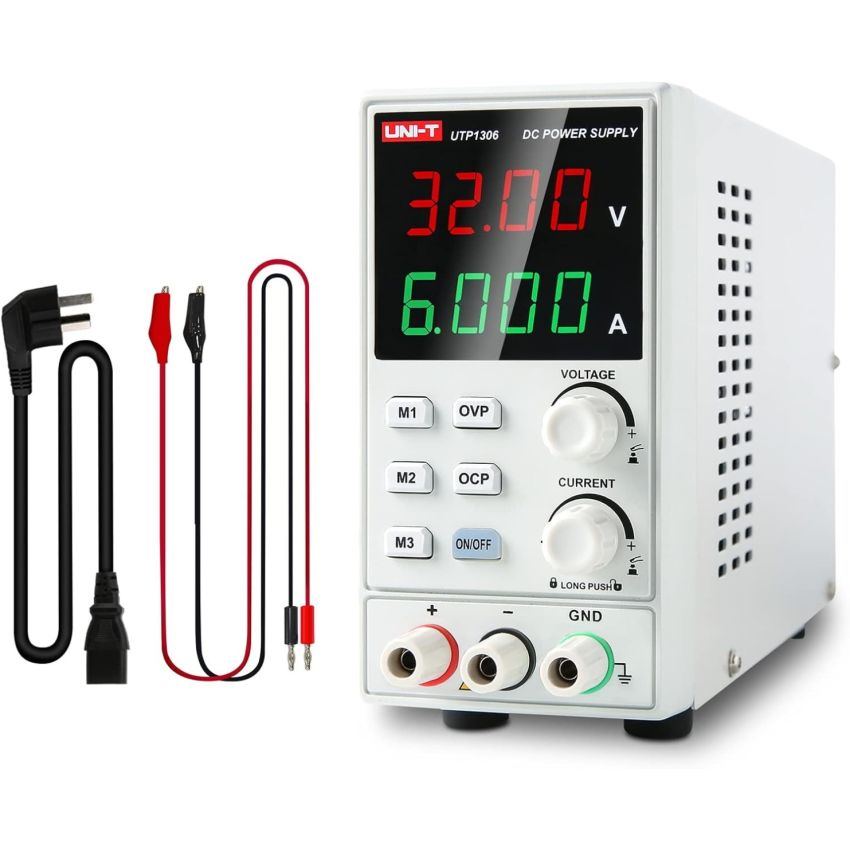

Dc power supply UTP1306

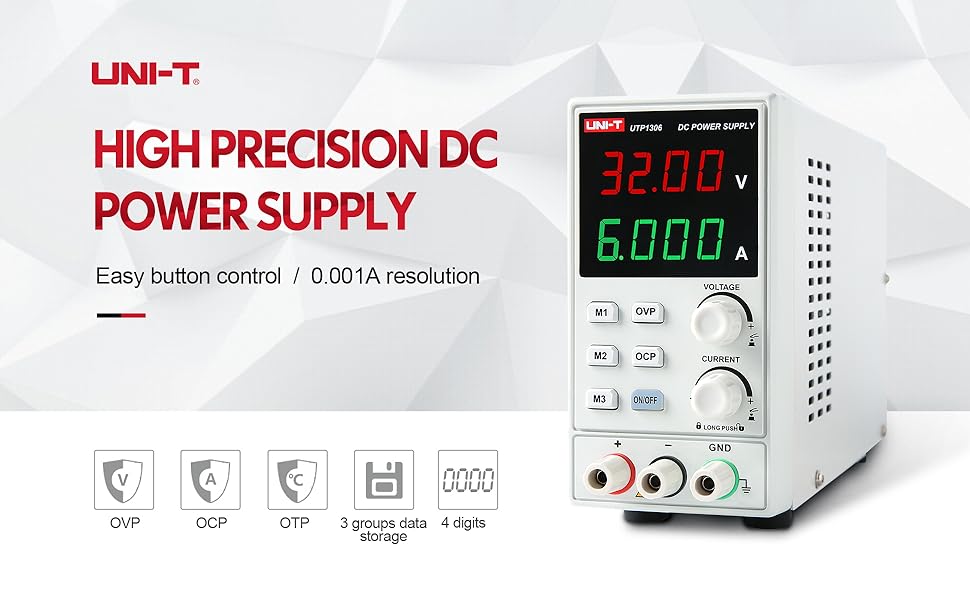

UTP1000 Series DC Regulated Power Supply

The UTP1000 Series is an economical, switching-type DC regulated power supply with a single output. It delivers a stable, pure output with excellent performance, making it ideal for a wide range of applications such as product debugging, maintenance, quality control, automated testing, and educational experiments.

Key Features:

• Maximum output: 32 V, 10 A with fine resolution of 10 mV / 1 mA
• Long-press panel lock to prevent accidental changes

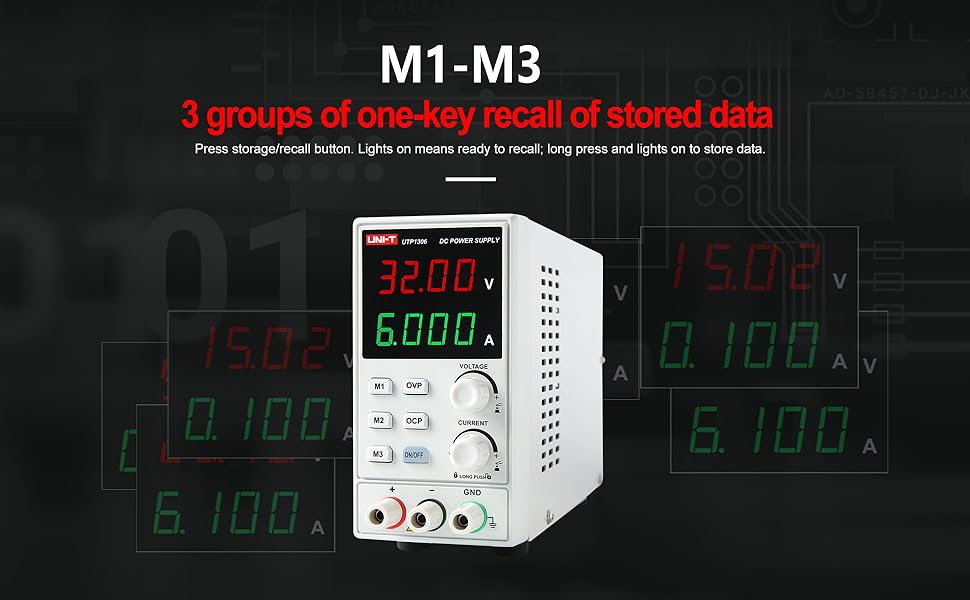

• Three sets of data memory storage: long press to save, short press to recall

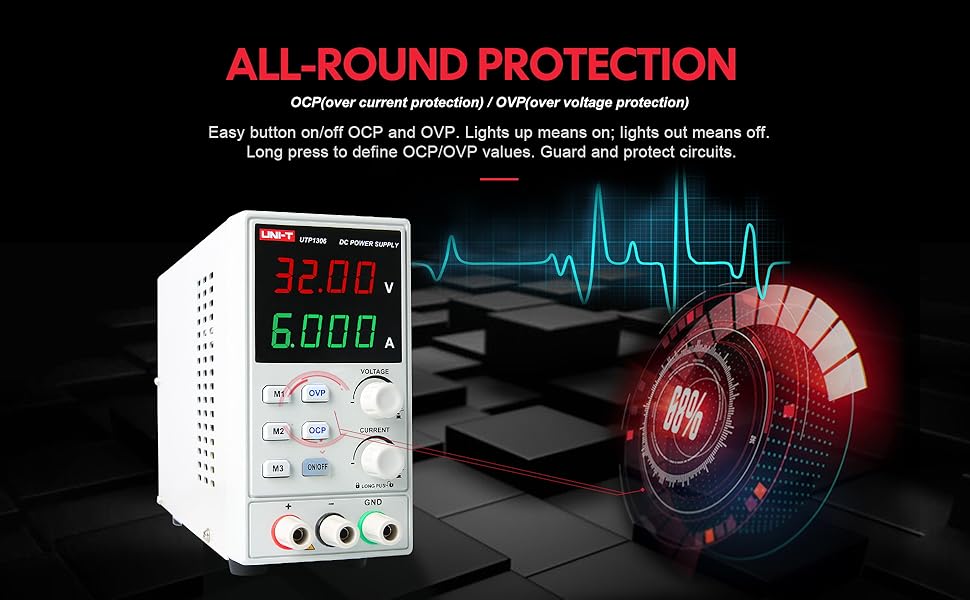

• Built-in over-current and over-voltage protection for safe operation
• High accuracy: Voltage ≤ (0.01% + 5 mV), Current ≤ (0.2% + 3 mA)

Specifications:

• Type: Switching Power Supply
• Channels: 1
• Total Power: 192 W
• Output Voltage: 32 V
• Output Current: 10 A
• Resolution: 10 mV / 1 mA
• Setting Accuracy: Voltage ≤ (0.01% + 5 mV), Current ≤ (0.2% + 3 mA)
