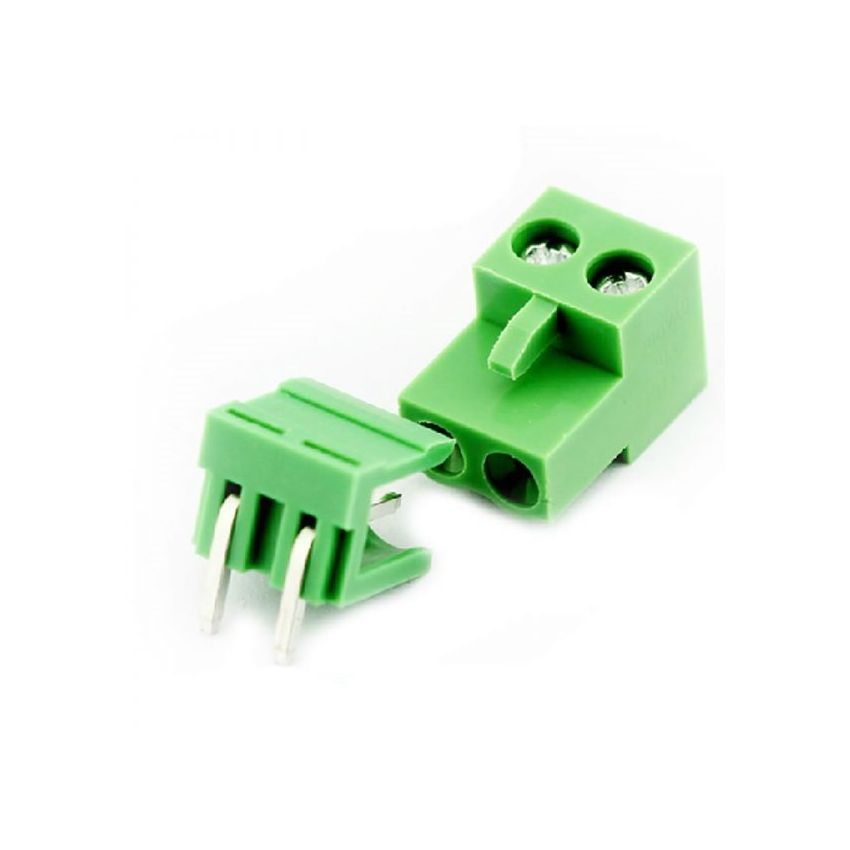

2EDGK 5.08mm Terminal Connector 2Pin Male Female Angle Pluggable PCB Mount

The 2EDGK 5.08mm 2-Pin Male/Female Angled Terminal Connector is a pluggable screw terminal block system designed for secure and modular PCB wiring. It consists of a female connector with screw terminals and a male PCB pin header with a 90° angle orientation, making it ideal for applications with height constraints or limited clearance.

Key Features:

• 5.08mm pitch ideal for power signal separation and modular wiring
• Secure plug-in design simplifies installation and future maintenance
• Angled male pin header improves compact mounting in limited vertical space
• Rated for 300V, 10A per contact for robust performance in control systems
• Accepts wire gauge from 24 to 12 AWG
• Flame-retardant PBT housing ensures high thermal and electrical insulation

Additional Specifications:

• Type: Pluggable Terminal Connector
• Gauge : 24–12 AWG
• Size: 5.08mm
