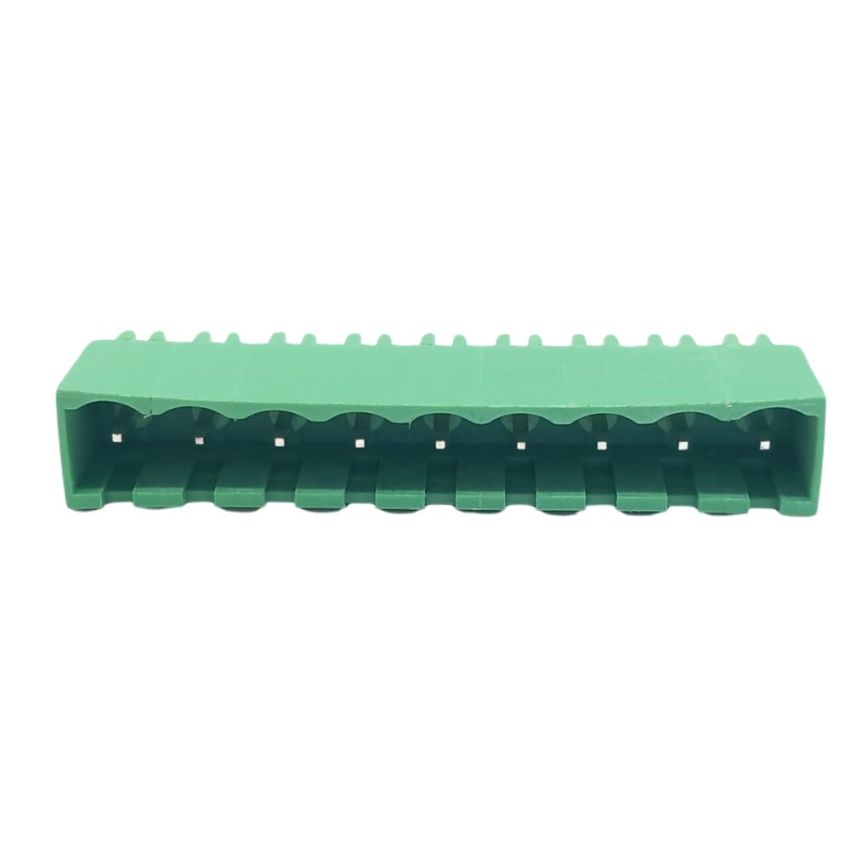

HC501,Male Terminal Connector,5.08mm Pitch,9-Pin

The HC501 is a 9-pin male terminal connector featuring a 5.08mm pitch, designed for PCB mounting. This standard plug-in type screw terminal block allows for universal connections across various conductor types. With a maximum rated voltage of 300V and a current capacity of up to 15A, it is suitable for a broad spectrum of electronic applications. The connector accommodates wire gauges ranging from 28 to 12 AWG, ensuring flexibility in wire selection. Its robust construction enables it to withstand soldering temperatures up to 250°C for 5 seconds and maintains an insulation resistance of 5000MΩ at 1000V, ensuring durability and reliability in demanding environments.
Key Features:

• 9-Pin Male Connector – Provides nine pins for versatile connections in various electronic applications.
• 5.08mm Pitch – Standard pin spacing suitable for numerous PCB designs.
• Screw Terminal Block – Facilitates secure and reliable wire connections.
• PCB Mount – Designed for direct mounting onto printed circuit boards.
• High Voltage and Current Ratings – Supports up to 300V and 15A, accommodating a wide range of applications.
• Wide Wire Gauge Compatibility – Accommodates wire sizes from 28 to 12 AWG.
