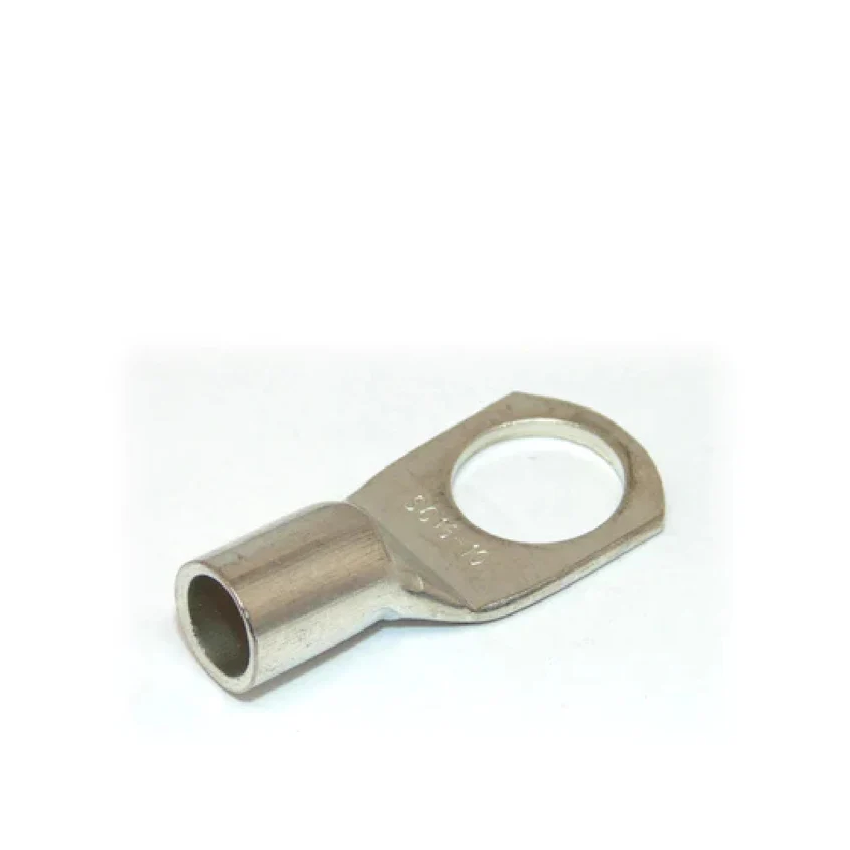

SC16 10 Cable Lug Heavy Duty Ring Terminal 16mm² Conductor M10 Hole

The SC16-10 Heavy Duty Cable Lug is a ring-type crimp terminal specifically engineered for 16mm² conductors and designed to fit an M10 stud (10mm hole). Made from high-purity tinned copper, it ensures maximum conductivity and superior resistance to oxidation and corrosion. This terminal lug is built to withstand demanding mechanical and thermal conditions, making it ideal for automotive systems, electrical panels, industrial equipment, and power distribution boards. The flared cable entry and solid tongue provide a strong mechanical bond when properly crimped, ensuring stable and long-lasting connections in high-current environments.

Key Features:

• Heavy-duty tinned copper for excellent electrical conductivity and corrosion resistance
• Designed for 16mm² cable with M10 stud hole (10mm diameter)
• Wide flange for secure crimping and long-term stability
• Operating temperature range: -55°C to +155°C
• Suitable for industrial, automotive, and power distribution applications
• RoHS compliant and UL recognized

Additional Specifications:

• Type: Cable Lug
• Gauge : 5 AWG
• Size: 10mm
