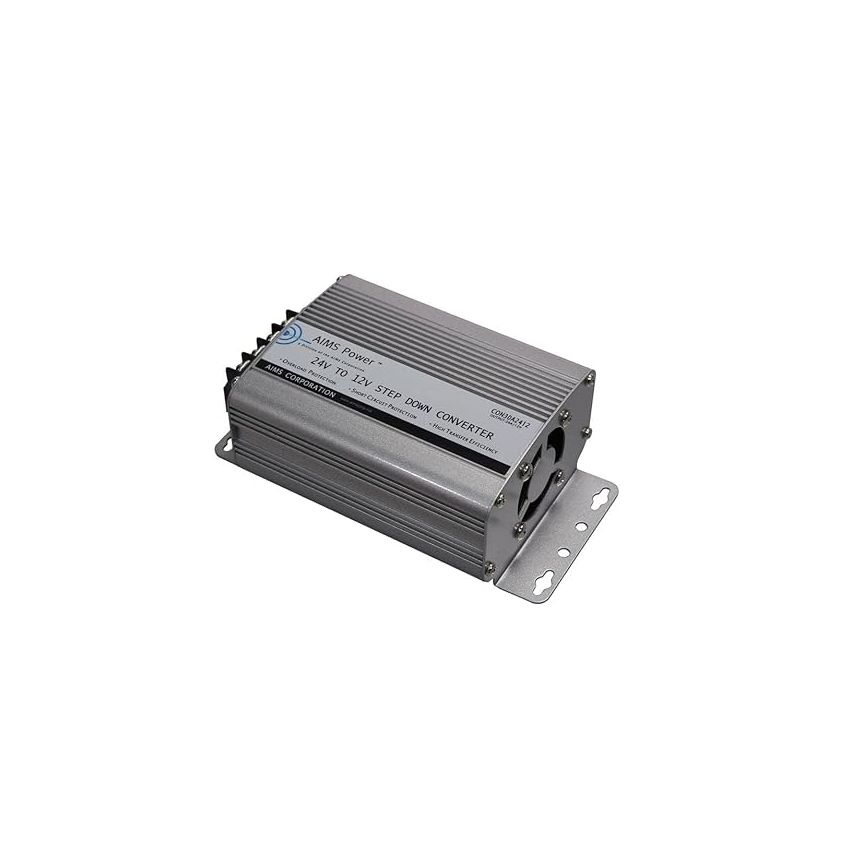

This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 60 Amps. This a non-isolated 60 amp DC-DC converter and is made for use in negative ground systems. These units have CE EN61000-6-3:2007 A1:2011 and CE EN61000-6-1:2007.

Features

- Green LED on front panel to confirm power on
- Terminal block for DC input/output
- Over Temperature protection
- Over Load protection
- DC Input Low Battery Shutdown
- DC Input High Battery Shutdown
- DC Output Short Protection
- DC Output Over Current Protection
- DC Output Over Voltage Protection
- Transformer based
- Aluminum case for optimal cooling
- Non-Isolated
- Instruction manual

Specifications

- DC Input Voltage: 20-37 Vdc
- DC Output Voltage: 12.5-13.5 Vdc
- Output Current: 60 amps
- Output Current Max: 72 amps
- Conversion Effiency: >90%
- DC Input Low Battery Shutdown: 18 /- 1 V
- DC Input High Battery Shutdown: >38Vdc
- DC Input Over Current Protection: 30A Fuse
- DC Input Polarity Protection: Fuse Protected
- Over Temperature Protection: 150 /- 5 degrees F
- DC Output Short Protection: Yes
- DC Output Over Current Protection: 72 amps
- DC Output Over Voltage Protection: TVS Diode
- Dimensions (LxWxH): 5.91" x 3.39" x 2.2"
- Weight: 2.0 lbs.
