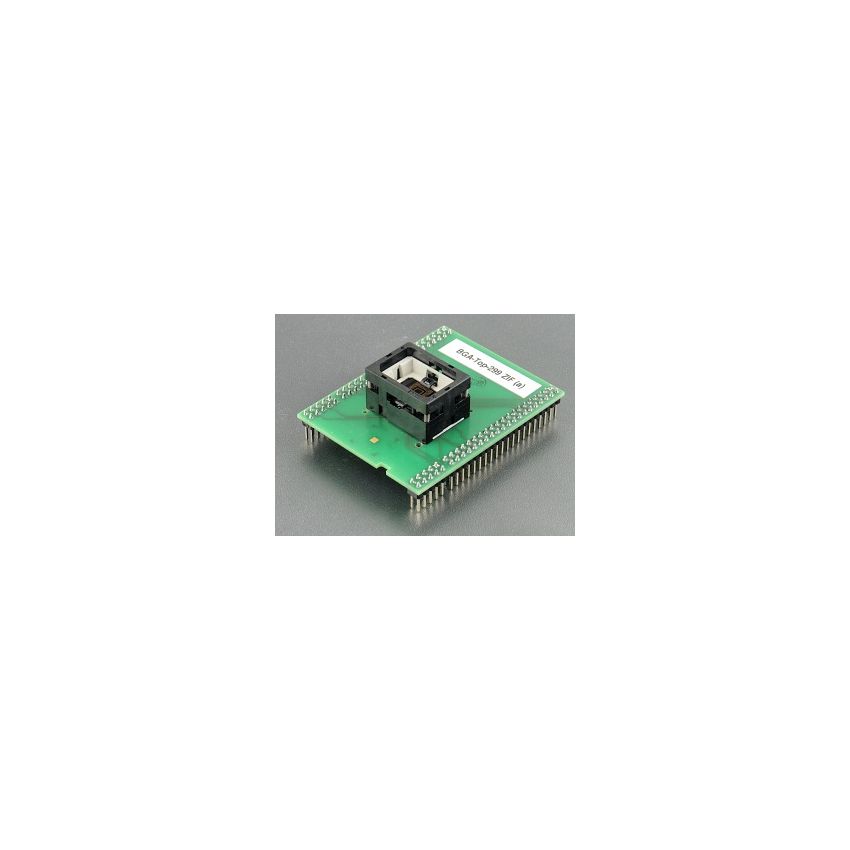

BGA-Top-299 ZIF (a)

special adapter, assigned for eMMC devices in BGA package

designed for TurboMode

ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball height and body thickness.

The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.

operating (mechanical) warranty of ZIF socket - 10,000 actuations

made in Slovakia

Ord. no. 70-2811A

Socket ZIF BGA153, OpenTop type

Connection to BGA-Bottom-X 4x25 pins, square, 0.6x0.6mm
