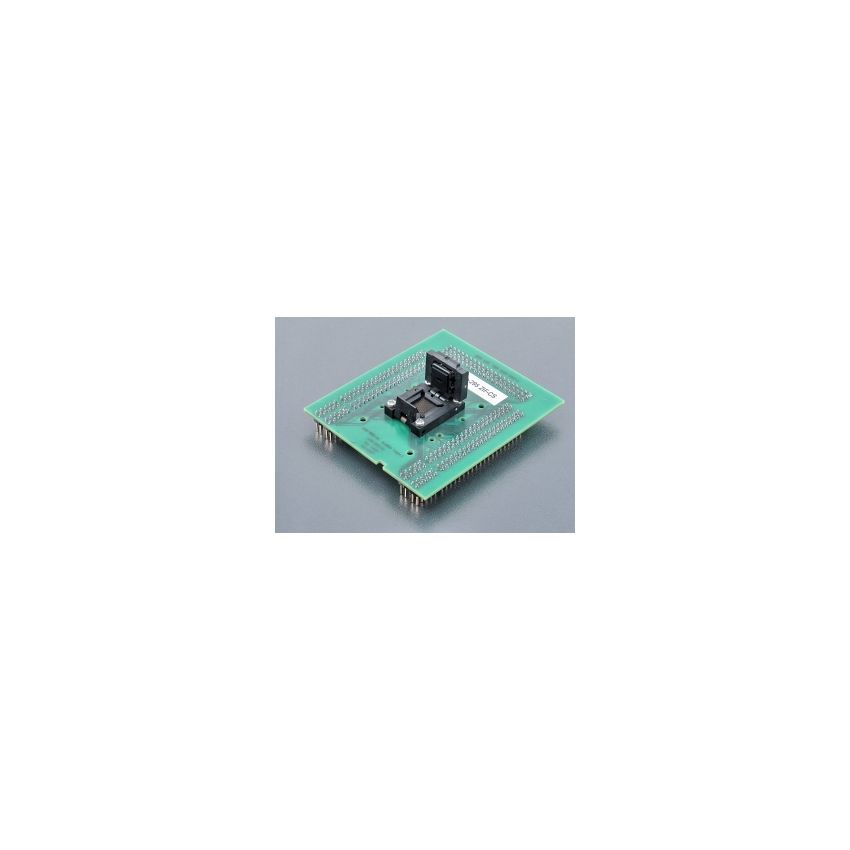

BGA-Top-295 ZIF-CS

top board of BGA adapters

ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball height and body thickness.

The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.

operating (mechanical) warranty of ZIF socket - 500,000 actuations

s/n from 2926-00041 are supported from PG4UW software version 3.76

made in Slovakia

Ord. no. 70-2926

Socket ZIF BGA169, ClamShell type

Connection to BGA-Bottom-X 8x25 3x20 pins, square, 0.6x0.6mm
