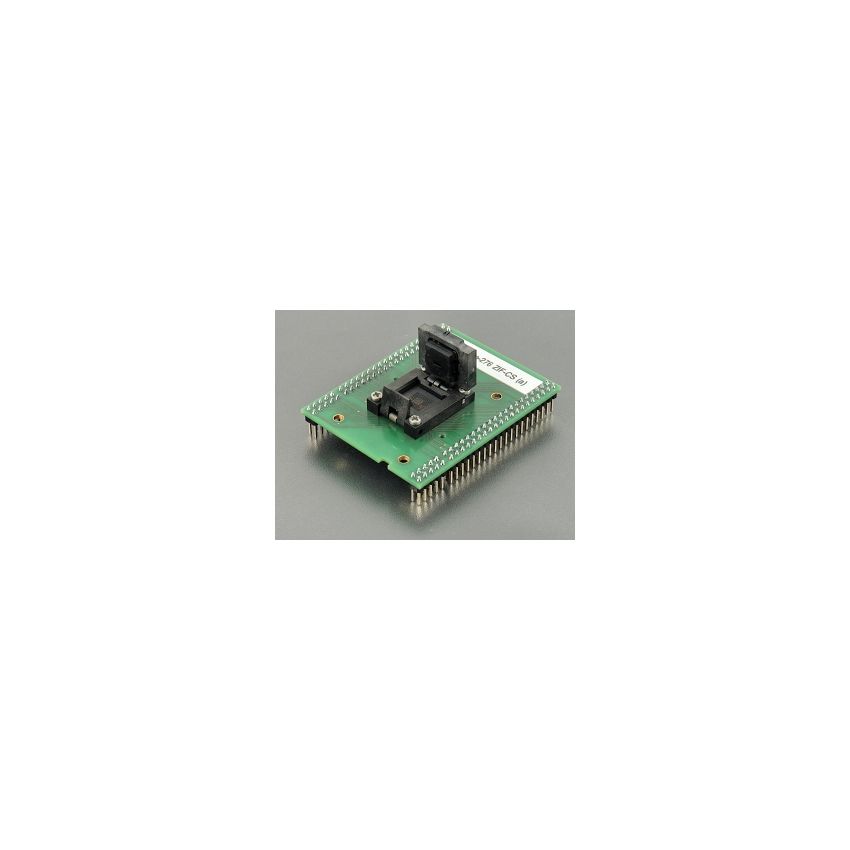

special adapter, assigned for eMMC devices in BGA package
designed for TurboMode
ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball height and body thickness.
The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.
operating (mechanical) warranty of ZIF socket - 500,000 actuations
s/n from 2554A-00232 supported from PG4UW software version 3.76
made in Slovakia
Ord. no. 70-2554A
Socket ZIF BGA153, ClamShell type
Connection to BGA-Bottom-X 4x25 pins, square, 0.6x0.6mm
