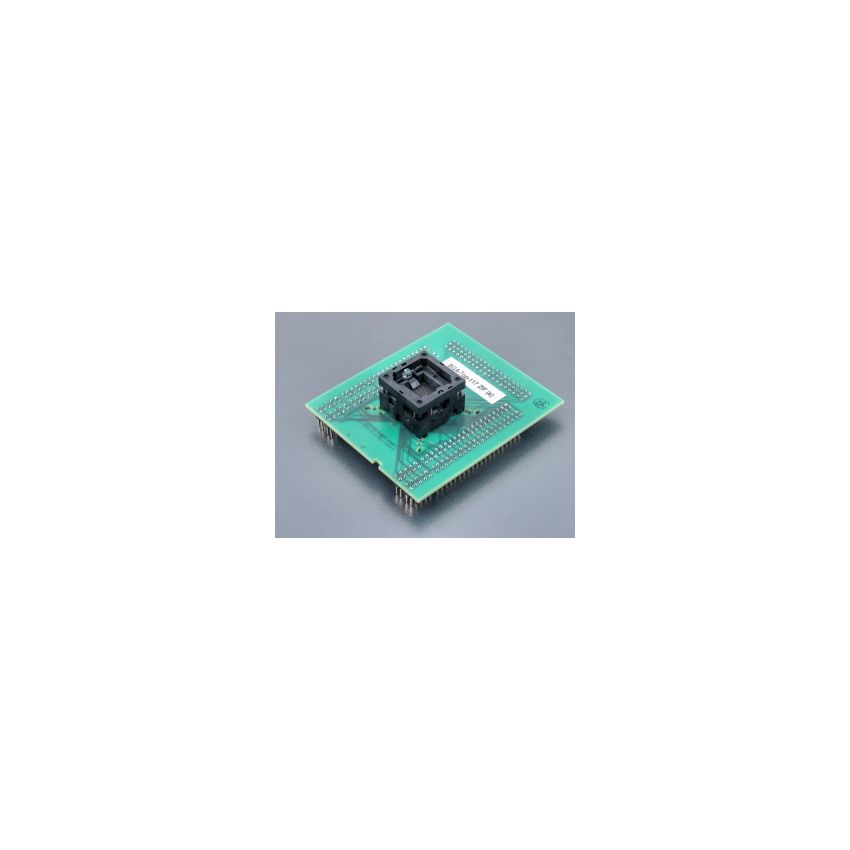

BGA-Top-117 ZIF (a)

The top board of the BGA adapter is designed to accommodate ZIF (Zero Insertion Force) sockets, which are capable of accepting one or more variants of supported packages with different ball diameter, ball height, and body thickness. This allows for flexibility in programming and testing different BGA packages within the supported range.



The ZIF socket used in the BGA adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during frequent use. It is supported from PG4UW software version 3.28, with serial numbers from 850A-00108 supported from PG4UW software version 3.76. This ensures compatibility and functionality with the programming software.



The BGA adapter is manufactured in Slovakia with a high level of craftsmanship and quality, ensuring reliable performance. The order number for this adapter is 70-0850A.



The connection to the BGA-Bottom-X is facilitated by 8x25 3x20 pins, arranged in a square pattern with a pin pitch of 0.6x0.6mm. This provides a secure and reliable connection between the top board and the bottom board of the BGA adapter, enabling efficient programming and testing of the BGA packages.



The top board of the BGA adapter is designed to provide a reliable and efficient interface for programming and testing operations on BGA100 packages with different specifications. It is manufactured in Slovakia with high quality standards, ensuring durability and performance.
