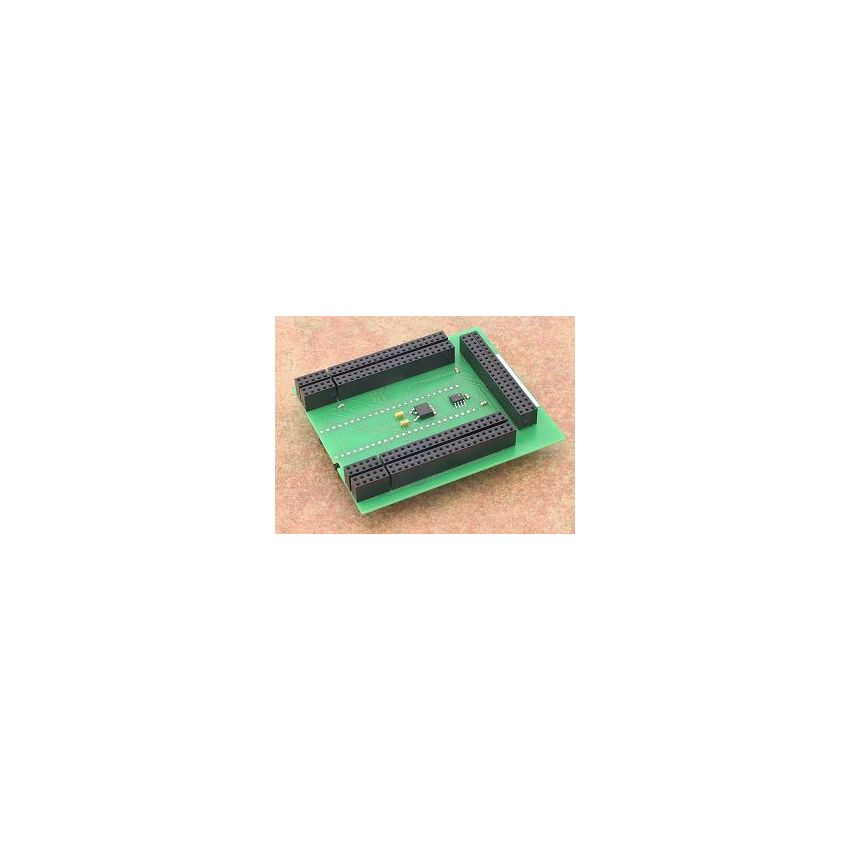

The bottom board of the BGA adapter with order number 70-0750 is specifically designed for use with TMS320F2812 BGA (Ball Grid Array) package in a 14x14 matrix configuration. This adapter is manufactured in Slovakia, ensuring high-quality construction and reliable performance.



The bottom board features 2 rows of 2x24 pins arranged in a square pattern, with a pin pitch of 0.6x0.6mm and rows spacing of 600mil. These pins provide the necessary connections for interfacing with the TMS320F2812 BGA package.



The connection to the top board (BGA-Top-X) is designed to accommodate 8 3 rows of sockets for 8x25 3x20 wire wrap pins, allowing for easy and reliable connection to the top board.



The order number for this BGA adapter is 70-0750, and it is specifically designed for use with TMS320F2812 BGA package in a 14x14 matrix configuration. It is made in Slovakia to high-quality standards, ensuring durability and performance in various application scenarios.
