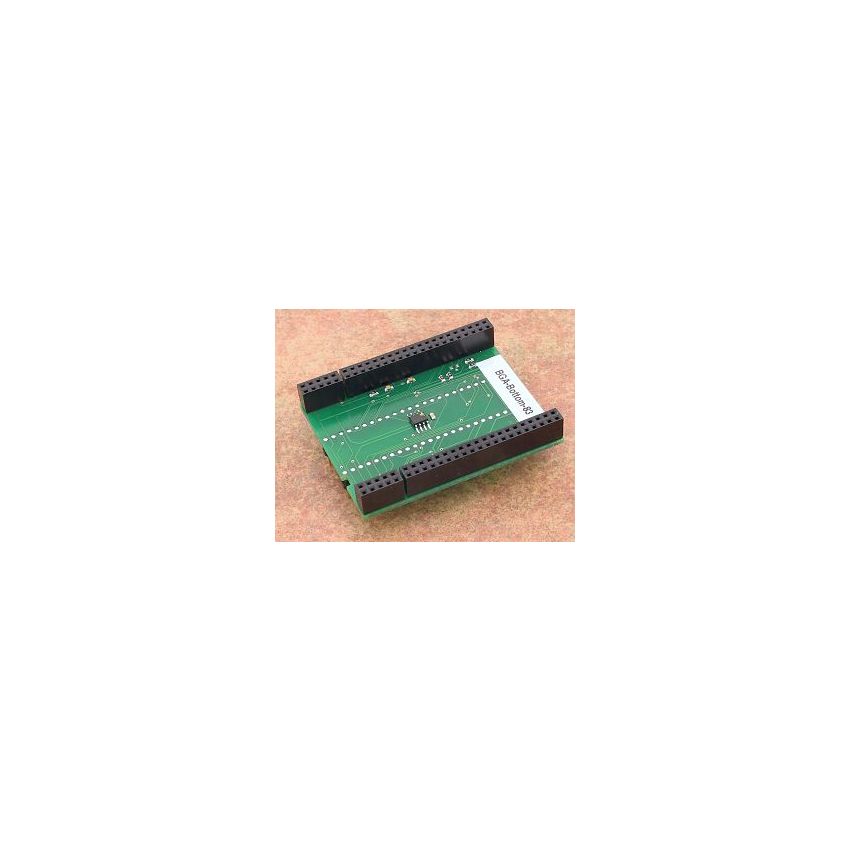

BGA-Bottom-83

The bottom board of the BGA adapter with order number 70-0733 is specifically designed for use with Altera Enhanced Configuration Devices in a matrix 12x8 configuration. This bottom board is manufactured in Slovakia to high-quality standards, ensuring reliable performance and durability.



The bottom board features a connection to the BGA-Top-X board using 4x25 sockets for wire wrap pins. This allows for secure and reliable connections between the bottom board and the top board, ensuring efficient programming and testing of Altera Enhanced Configuration Devices.



The bottom board also features a 2x24 pin configuration, arranged in a square pattern with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration provides precise and secure connections to the Altera Enhanced Configuration Devices, allowing for accurate and efficient programming and testing operations.



The order number for this bottom board of BGA adapter is 70-0733. With its compatibility with Altera Enhanced Configuration Devices in a matrix 12x8 configuration, made in Slovakia manufacturing, and reliable connection to the top board using wire wrap pins, this bottom board offers a reliable and efficient solution for programming and testing of Altera Enhanced Configuration Devices.
