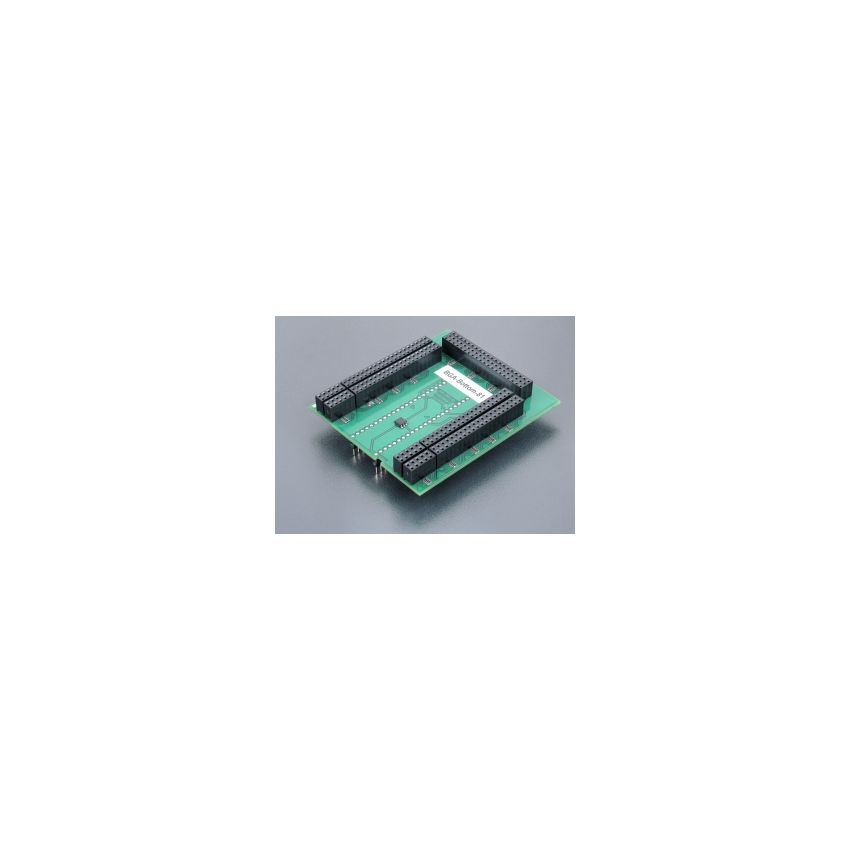

BGA-Bottom-81

The bottom board of the BGA adapter is designed for PLD (Programmable Logic Device) devices, specifically Lattice ispLSI5000VE, in a 16x16 matrix configuration. The adapter is supported from PG4UW software version 3.64t and is manufactured in Slovakia. The order number for this adapter is 70-0831.



The connection to BGA-Top-X is made through 8x25 3x20 sockets for wire wrap pin, providing a reliable interface for programming and testing PLD devices. The bottom board of the adapter features 2 rows of 2x24 pins each, arranged in a square pattern with a pin pitch of 0.6x0.6mm and a row spacing of 600mil. This configuration is compatible with the Lattice ispLSI5000VE PLD devices in a 16x16 matrix, ensuring a secure and reliable connection.



The adapter is designed to be used with the PG4UW software version 3.64t, providing support for programming and testing Lattice ispLSI5000VE PLD devices. It is manufactured in Slovakia with high-quality materials and craftsmanship to ensure durability and reliability in demanding environments. The adapter is a valuable tool for electronic engineers and technicians working with PLD devices, providing a seamless interface for programming and testing operations.
