BGA-Bottom-79

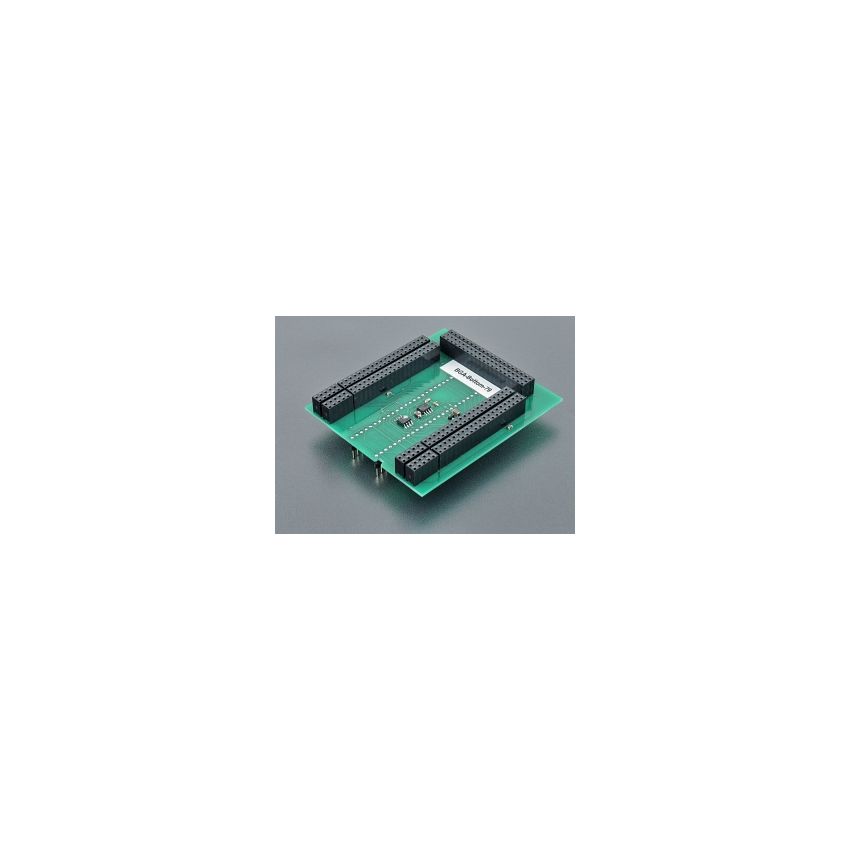

The bottom board of the BGA adapter with order number 70-0754 is specifically designed for use with FPGA devices of the Xilinx Spartan-3AN family in a matrix configuration of 16x16. This adapter is made in Slovakia, ensuring high-quality construction and performance.



The connection to the BGA-Top-X board is achieved through 8 3 rows of sockets, which are designed to accommodate 8x25 3x20 wire wrap pins. This allows for reliable and efficient interfacing between the BGA-Top-X board and the FPGA device.



The bottom board of the adapter features 2 rows of 2x24 pins arranged in a square pattern, with a pin pitch of 0.6x0.6mm and rows spacing of 600mil. These pins provide the necessary connections for interfacing with the FPGA device, enabling data transfer and programming operations.



The order number for this bottom board of the BGA adapter is 70-0754, and it is specifically designed for use with Xilinx Spartan-3AN FPGA devices in a matrix configuration of 16x16. It is made in Slovakia to high-quality standards, ensuring reliable performance in programming and interfacing applications.
