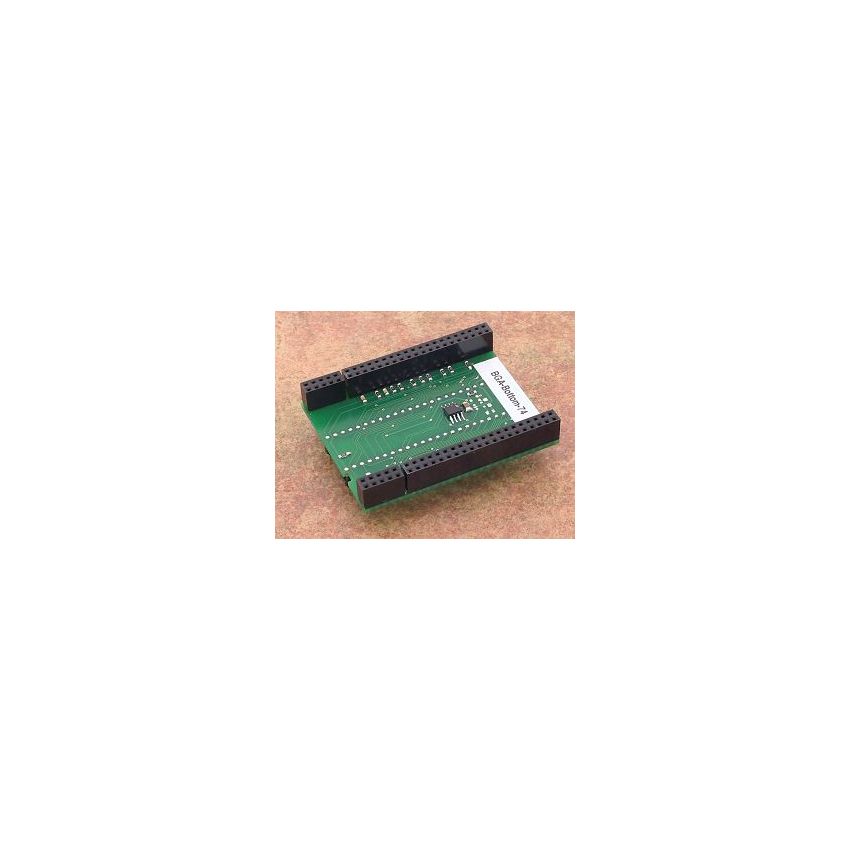

BGA-Bottom-74

The bottom board of the BGA adapter, assigned with order number 70-0686, is specifically designed for Intel RD/PF48F4400P0 devices in a matrix of 10x8 BGA package. The adapter is manufactured in Slovakia and is of high quality, providing reliable and efficient programming and testing of Intel RD/PF48F4400P0 devices.



The connection to the BGA top board is through 4 rows of sockets, designed for 4x25 wire wrap pins. The bottom board features 2 rows of 2x24 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is compatible with Intel RD/PF48F4400P0 devices in a 10x8 BGA package.



The BGA adapter bottom board is designed to provide a reliable and efficient solution for programming and testing Intel RD/PF48F4400P0 devices, ensuring accurate and reliable operation. The order number for this bottom board of BGA adapter is 70-0686, and it is made in Slovakia to high manufacturing standards.
