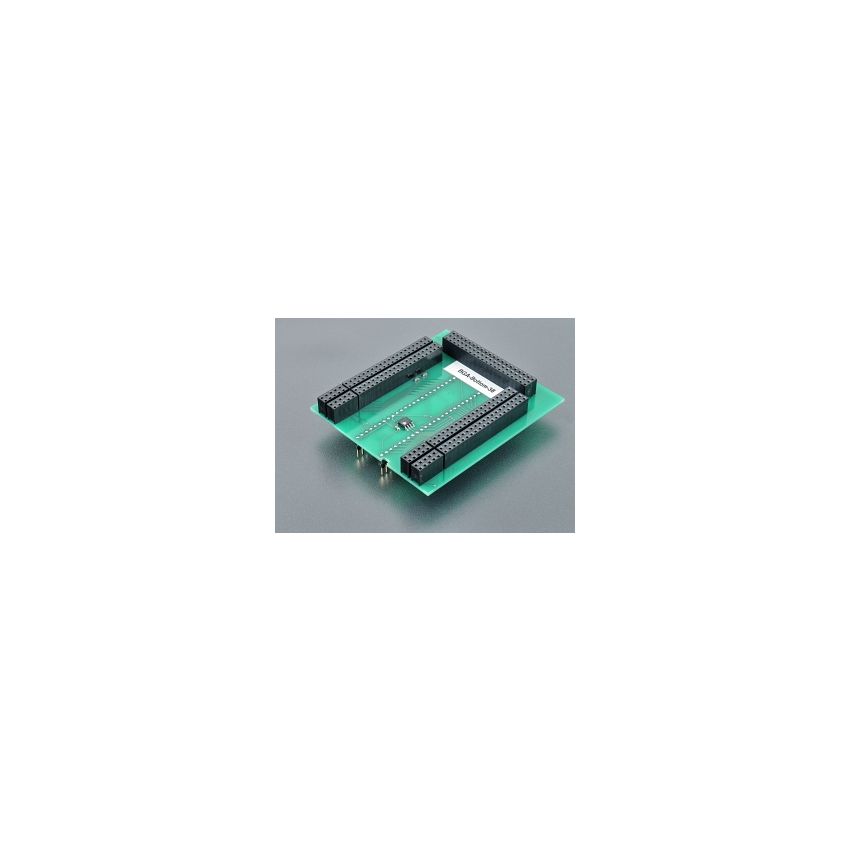

BGA-Bottom-38

The bottom board of the BGA adapter with Ord. no. 70-0620 is specifically designed for CPLD (Complex Programmable Logic Device) devices, specifically Altera MAX II, in a 10x10 matrix configuration. The bottom board is made in Slovakia, known for its high-quality manufacturing standards, ensuring reliable performance.



The connection to the BGA-Top board is established through 8 3 rows, with sockets for 8x25 3x20 wire wrap pins, providing a secure and efficient connection between the top and bottom boards. The bottom board features 2 rows of 2x24 pins arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600mil (0.6 inches).



This bottom board is specifically designed to accommodate Altera MAX II CPLD devices, making it suitable for programming or testing applications involving these devices. With its robust construction and reliable performance, the bottom board of this BGA adapter is an ideal solution for working with Altera MAX II CPLD devices in a 10x10 matrix configuration.
