BGA-Bottom-34

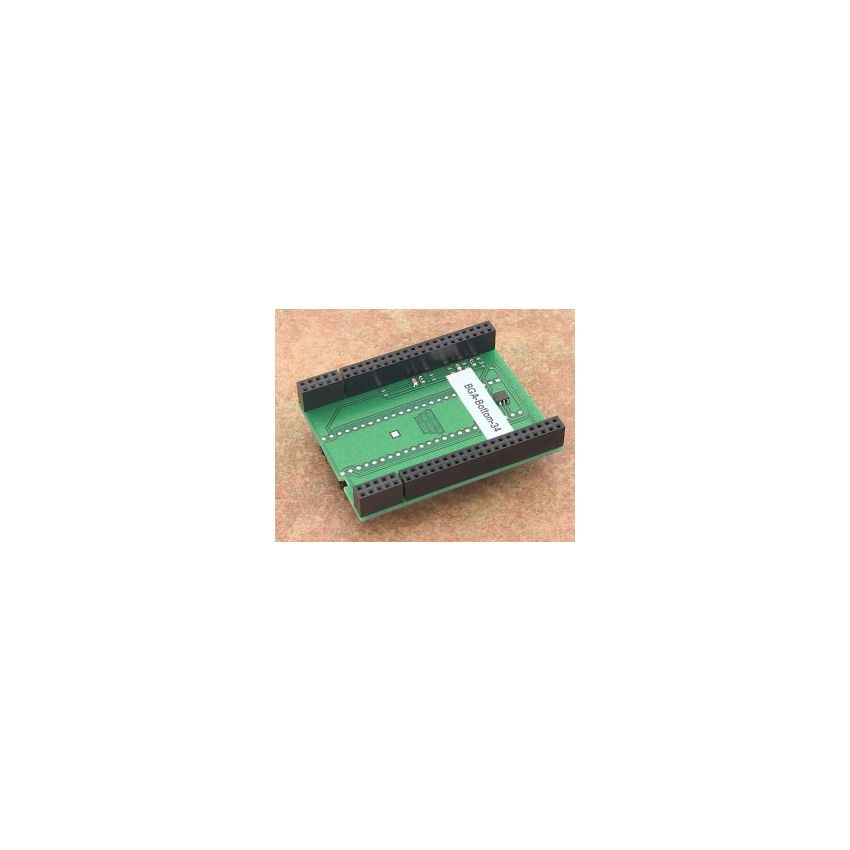

The bottom board of the BGA adapter with Ord. no. 70-0459 is specifically designed for CPLD (Complex Programmable Logic Device) devices from Xilinx CoolRunner XPLA3 series in a matrix 7x7 configuration. The adapter is made in Slovakia, adhering to high-quality standards for reliable performance and durability.



The bottom board features 2 rows of 2x24 pins, arranged in a square pattern with a row spacing of 600mil. These pins are designed to provide a reliable electrical connection between the adapter and the target CoolRunner XPLA3 devices. The pins are compatible with Xilinx CoolRunner XPLA3 series devices, ensuring efficient communication and operation during programming or testing.



The connection to the BGA-Top-X on the top board of the adapter includes 4 rows of sockets for 4x25 wire wrap pins. This allows for a secure and reliable connection between the top and bottom boards of the adapter, facilitating smooth communication and operation during programming or testing of the CPLD devices.



The Ord. no. 70-0459 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the adapter with the specific CoolRunner XPLA3 devices and follow the manufacturer's guidelines for proper usage to ensure correct functionality and avoid potential damage to the devices or the adapter.
