BGA-Bottom-32

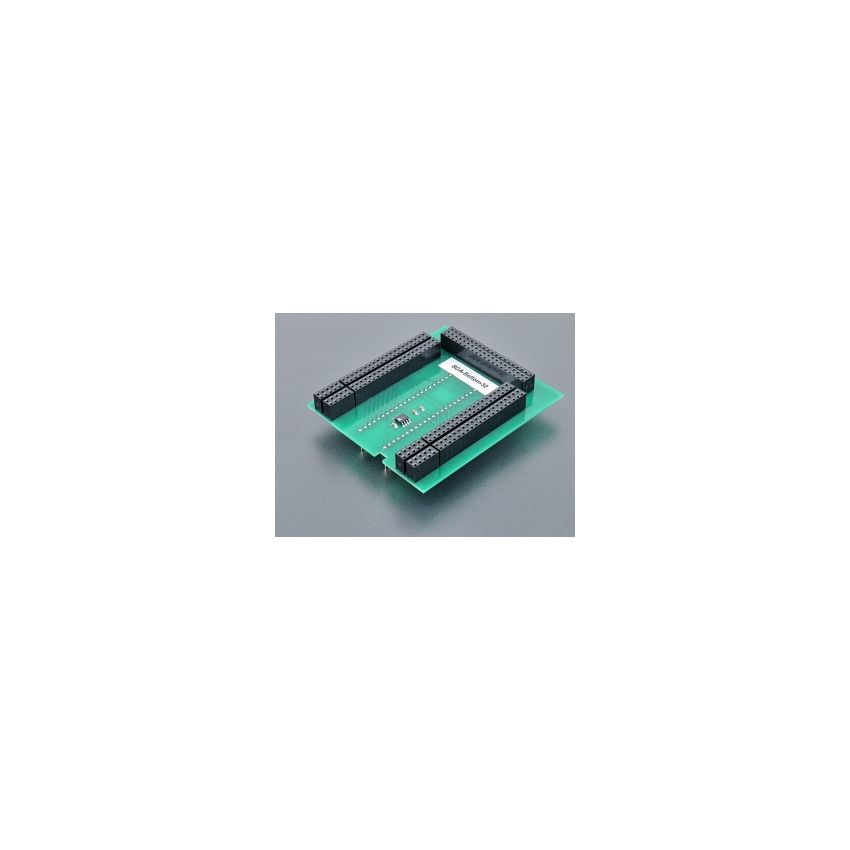

The bottom board of BGA adapters with Ord. no. 70-0452 is designed specifically for CPLD devices Altera MAX II in a matrix of 16x16. This bottom board is made in Slovakia to high-quality standards, ensuring reliable performance.



The connection to the BGA-Top-X on this bottom board features 8 3 rows of sockets, accommodating 8x25 3x20 wire wrap pins. This allows for a secure and reliable connection between the bottom board and the BGA-Top-X adapter.



The bottom board also features 2 rows of 2x 24 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm and rows spacing of 600mil. This design allows for a reliable electrical connection to the CPLD devices, enabling efficient testing, programming, or other operations.



The Ord. no. 70-0452 serves as a unique identifier for this specific bottom board, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the bottom board with the specific CPLD devices before proceeding with any operations to ensure proper functionality and avoid potential damage to the devices or the bottom board.
