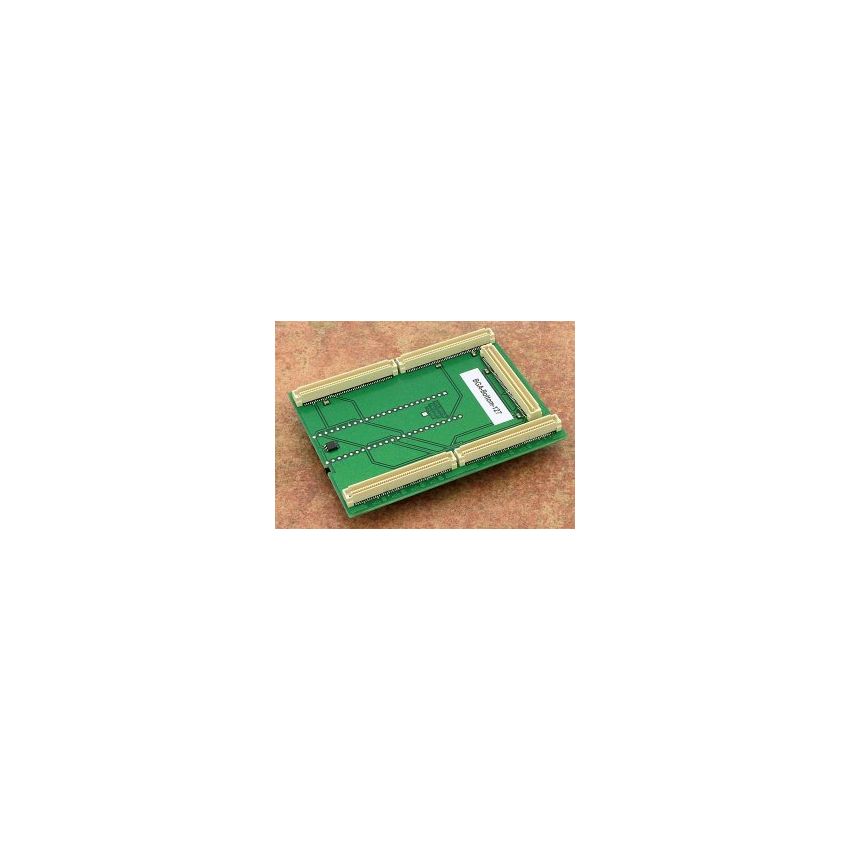

BGA-Bottom-127

The bottom board of BGA adapters is specifically designed for CPLD (Complex Programmable Logic Device) devices, specifically the Xilinx CoolRunner-II, in a matrix configuration of 22x22-14x14 6x6. This bottom board is made in Slovakia, known for its high-quality manufacturing standards, and has an order number of 70-0954 for easy identification and ordering.



The bottom board features 8x50 2x50 sockets for B-T-B (Board-to-Board) connectors, with a pitch of 0.8mm, providing reliable and secure connections to the CPLD devices. The bottom board has 2x24 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil, allowing for accurate alignment and connection.



This bottom board of BGA adapters is specifically designed for use with Xilinx CoolRunner-II CPLD devices in a matrix configuration of 22x22-14x14 6x6, and it is made in Slovakia with an order number of 70-0954. It features sockets for B-T-B connectors with a pitch of 0.8mm, and the bottom board has 2x24 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil.
