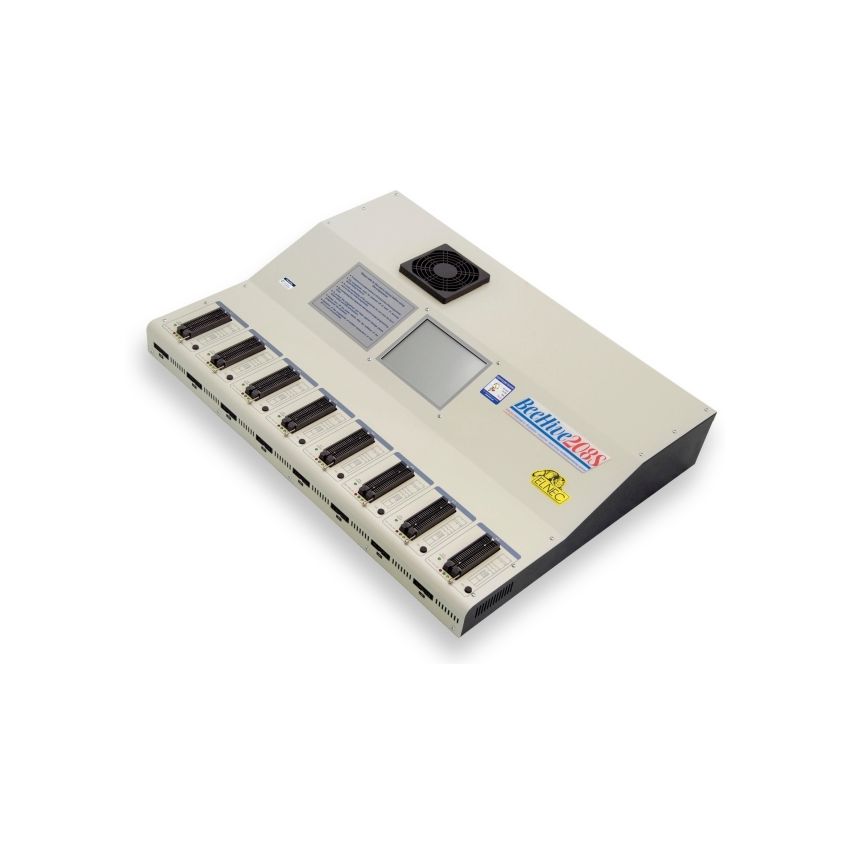

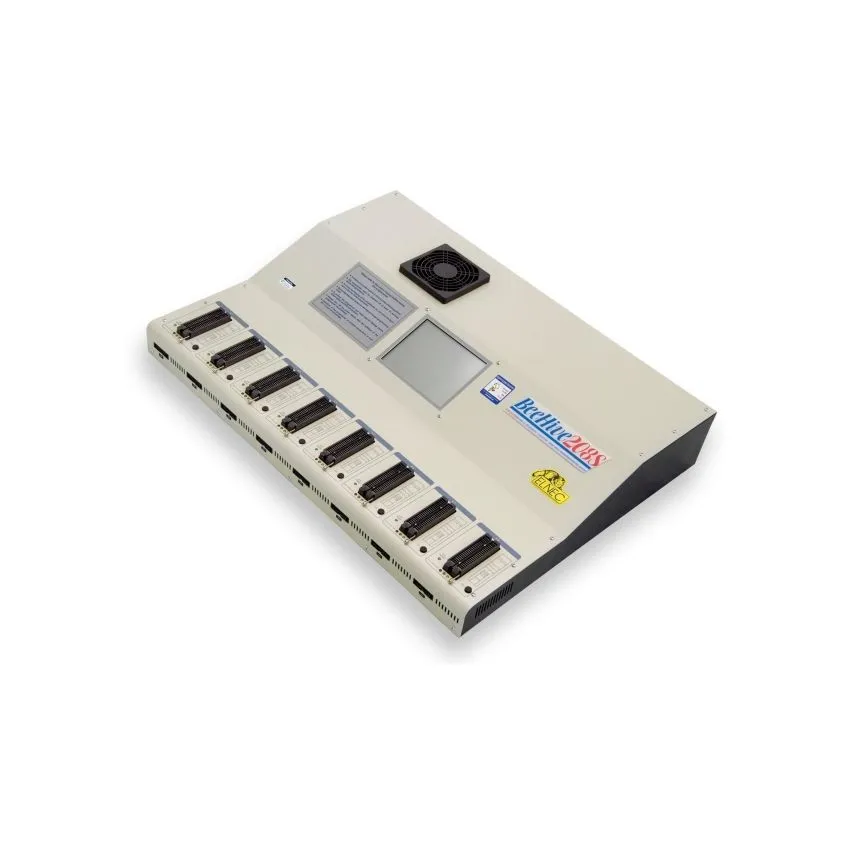

The Universal 8x 48-pin-drive Stand-Alone Concurrent Production Programmer (Multiprogramming System) is a high-speed, efficient programming solution for a wide range of devices from 429 manufacturers. With eight independent universal programming modules, extremely fast programming speed, and in-circuit programming capability, this programmer offers convenient and reliable device programming for production environments.

Features:

Supports 127,494 devices from 429 manufacturers with the latest software version
Eight independent universal programming modules based on BeeProg2
Sustainable programming speed greater than 5 MBytes per second
Programs 2 GB eMMC NAND Flash in less than 365 seconds
Powerful independent pin-driver circuit for each pin of the programmer
In-circuit programming capability through ISP connector
Graphics control unit with touch screen for easy operation
Very low voltage support for the latest Flash memory chips
ESD protection on each pin of the sockets
No adapter required for any DIL devices
Microsoft Windows Embedded 8.1 Industry Pro driven control PC inside the programmer
Quick software updates in response to customer needs
Made in Slovakia with a 3-year warranty
Approved by CE laboratory to meet CE requirements

Operation:

Operating voltage: 100-240V AC rated, 90-264 VAC max., 47-63 Hz
Power consumption: Max. 300W active
Maximal outside dimensions: 625x465x115 mm (24.6 x 18.3 x 4.5 inch)
Weight (programmer): 14.9kg (32.85 lb)
Operating temperature: 5°C to 35°C (41°F to 95°F)
Operating humidity: 20% to 80%, non-condensing
Package Includes:

Standard Accessories:

BeeHive208S programmer
Power cord
Diagnostic pod for ZIF socket self-test of the programmer (1x)
Diagnostic pod for ISP connector self-test of the programmer (1x)
48 Pins Calibration test pod, Type I (1x)
ISP cable (8x)
Anti-dust cover for ZIF socket (8x)
USB flash drive
CD with software and user's manual
Calibration test report
Transport case
