DESCRIPTION:

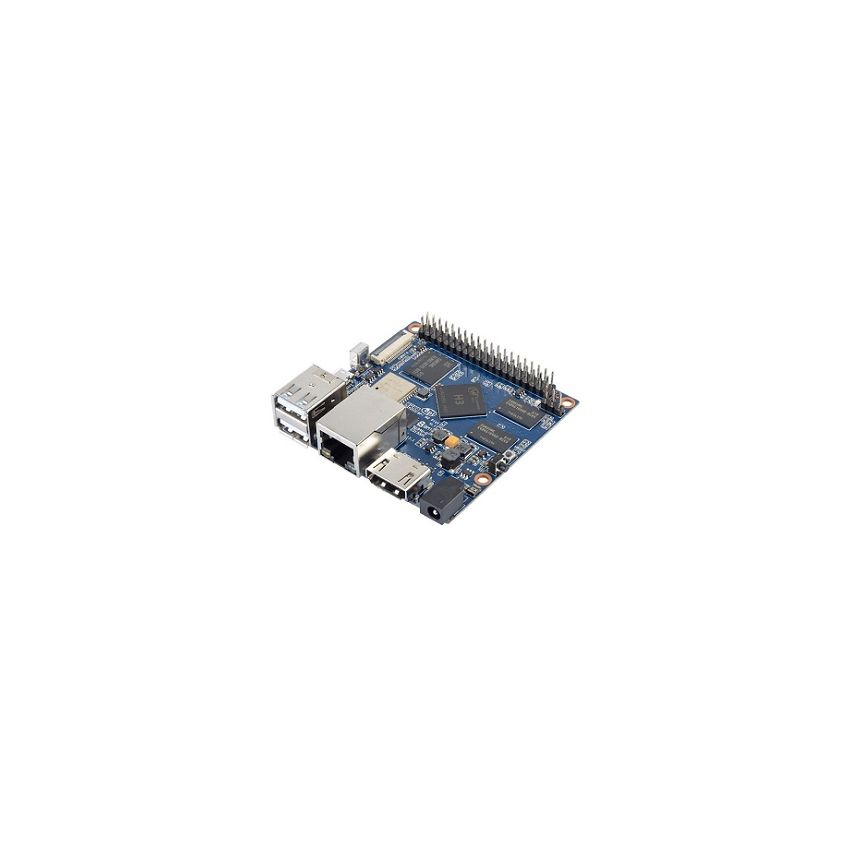

• Banana PI BPI-M2 is the open source hardware platform,Banana PI BPI-M2 is an quad core version of Banana Pi,it support WIFI on board. use Alliwnner H3 chip on board.
• Banana Pi BPI-M2 series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image.
• Banana PI PBI-M2 hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board,and SDIO wifi&BT4.0 module on board.
• Banana PI BPI-M2 with Gigabit ethernet port, It can run with Android 4.4 smoothly. it can easily run with the game it support 1080P high definition video output and 4K support, the GPIO compatible with Raspberry Pi B and can support raspbian Image.

specifications:

• dimensions : 65mm*5mm
• CPU : H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU : Mali400MP2 GPU @600 MHz,Supports OpenGL ES 2.0
Memory : 1GB DDR3 (shared with GPU)
Flash : 8GB eMMC flash onboard
Network : 10/100/1000 Ethernet
WIFI&BT : SDIO AP6212 for Wifi &BT 4.0?option AP6181 AP6335?
Video Input : A CSI input connector Camera:1 Supports 8-bit YUV422 CMOS sensor interface,2 Supports CCIR656 protocol for NTSC and PAL, 3 Supports SM pixel camera sensor, 4 Supports video capture solution up to 1080p@30fps
Video Outputs : Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS
Audio Outputs : HDMI
Power : 5V/2A DC input can supply power, but USB OTG input don’t supply power
USB 2.0 ports : two USB 2.0 HOST, one USB 2.0 OTG
GPIO : 40 Pins Header,compatible with Raspberry Pi B
LED : Power led & Status led
IR : IR input on board
OS : Android, Ubuntu, Debian, Raspberry Pi Image
