Features:

• DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor Controller Driver Sensor Reduction Gear Network in one DC servo module. • DYNAMIXEL AX-series are used in ROBOTIS STEM, Premium, and GP. • You can easily create various types of robots such as humanoid, 4 legged and 6 legged robots with the AX-series. • It can also be used as a wheel so that you can create a robot with a combination of wheel type and joint type in a single module. • By using a variety of high-strength engineering plastic option frames or by printing frames using a 3D printer, you can produce any type of robot at a low cost.

Specifications:

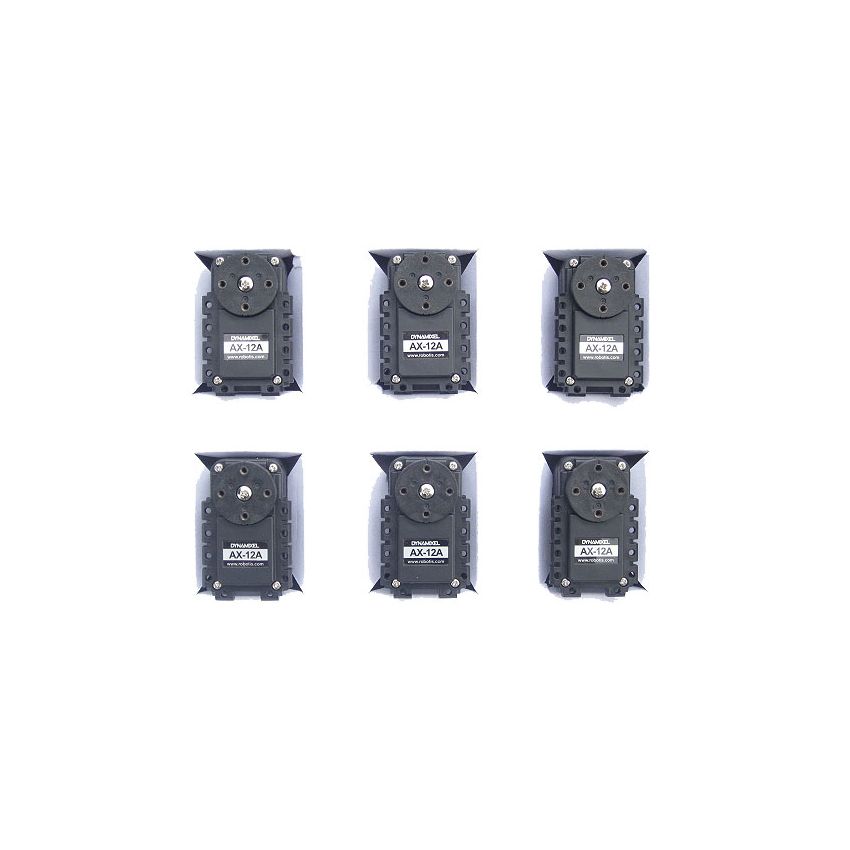

• Input Voltage : • Min. [V] 9.0 • Recommended [V] 11.1 • Max. [V] 12.0 • Voltage [V] 12.0 • Stall Torque [N·m] 1.50 • Stall Current [A] 1.5 • No Load Speed [rpm] 59.0 • No Load Current [A] 0.14 • Position Sensor Potentiometer • Operating Temperature Min. [°C] : -5 • Operating Temperature Max. [°C] : 70 • Motor : Cored • Dimensions (WⅹHⅹD) [mm] 32 X 50 X 40 • Dimensions (WⅹHⅹD) [inch] 1.26 X 1.97 X 1.57 • Weight [g] 55.00 Package Components AX-12A x 6
