Specifications:

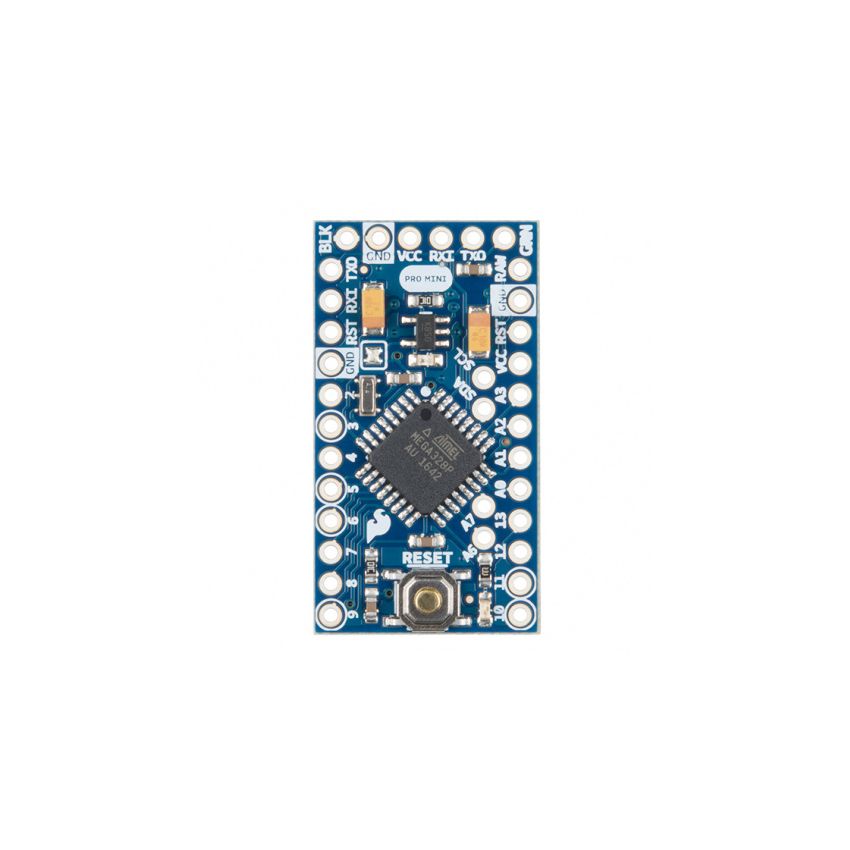

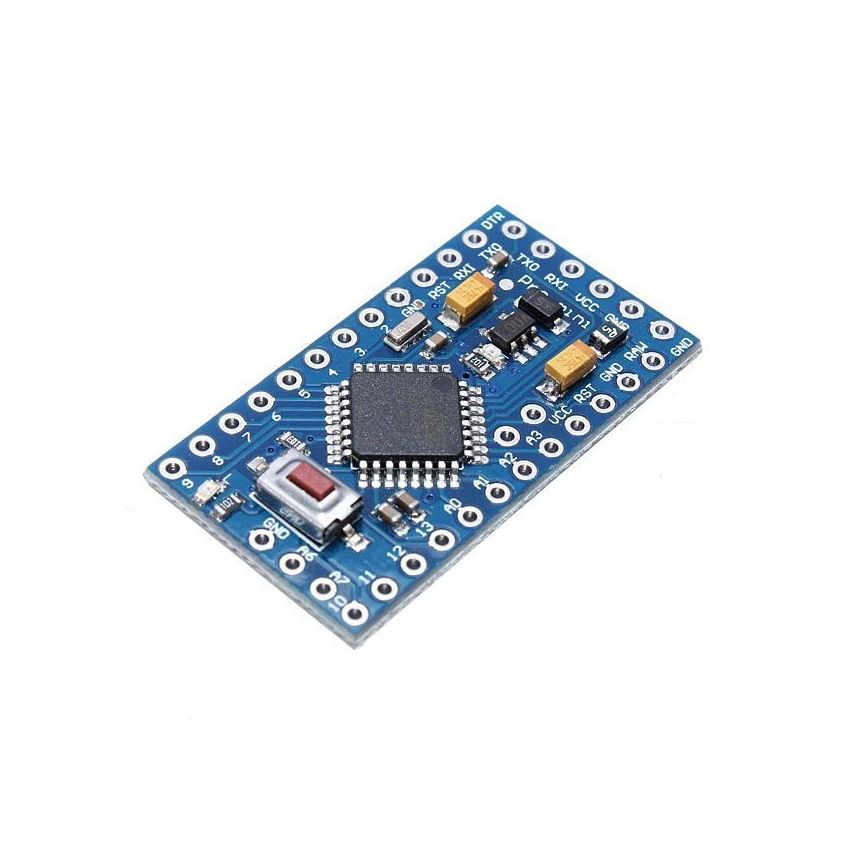

The Arduino Pro Mini Atmega328 5V/150mA 16MHz is a compact version of the Arduino, designed for projects where space is at a premium. It features the ATmega328 microcontroller running at 16MHz with an external quartz crystal for timing accuracy. The board includes:

• A 5V integrated voltage regulator with a maximum output current of 150mA.
• Auto-reset capability.
• Protection against overload and reverse polarity.
• An operating voltage of 5V, and it can accept a DC input from 5V up to 12V.
• A power LED and a status LED.
• 14 digital input/output pins, with 6 that can support PWM outputs.
• 6 analog inputs.
• It does not come with pre-mounted headers, providing flexibility in connecting various types of connectors or direct soldering of wires.
• Dimensions are approximately 1.8 × 3.3 × 0.2 cm, and it weighs about 0.1 kg.
• This board is particularly suitable for permanent installations or applications where a compact size is crucial. Its design allows for direct soldering to the board, offering versatility in how it's integrated into projects. For more detailed information, you can visit the pages on MakerElectronico and deltadiki.

Learning Resources:

Applications and Projects:

The Arduino Pro Mini is highly versatile, used in various applications including wearable technology, DIY electronics projects, compact devices, and educational purposes. Its small form factor makes it ideal for integrating into projects where space is limited. Common uses involve sensor networks, small robotics, and custom wearables, benefiting from its low power consumption and ability to run on battery power. Its programmability and range of digital and analog inputs/outputs support a wide array of peripherals and sensors, enabling a broad spectrum of hobbyist and educational projects.
