Specifications:

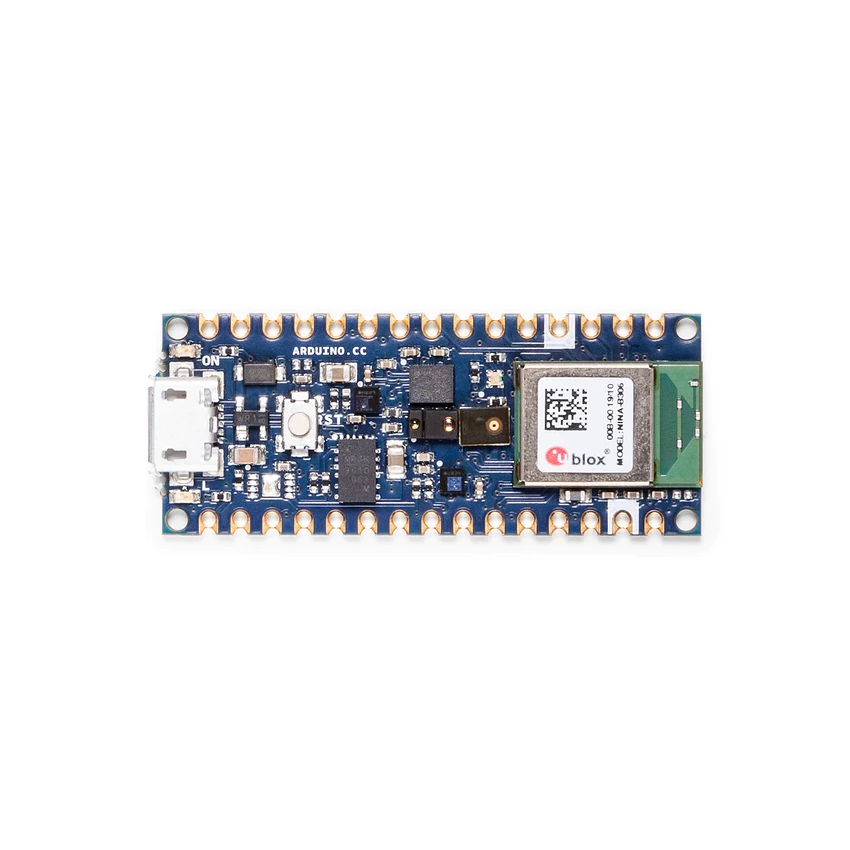

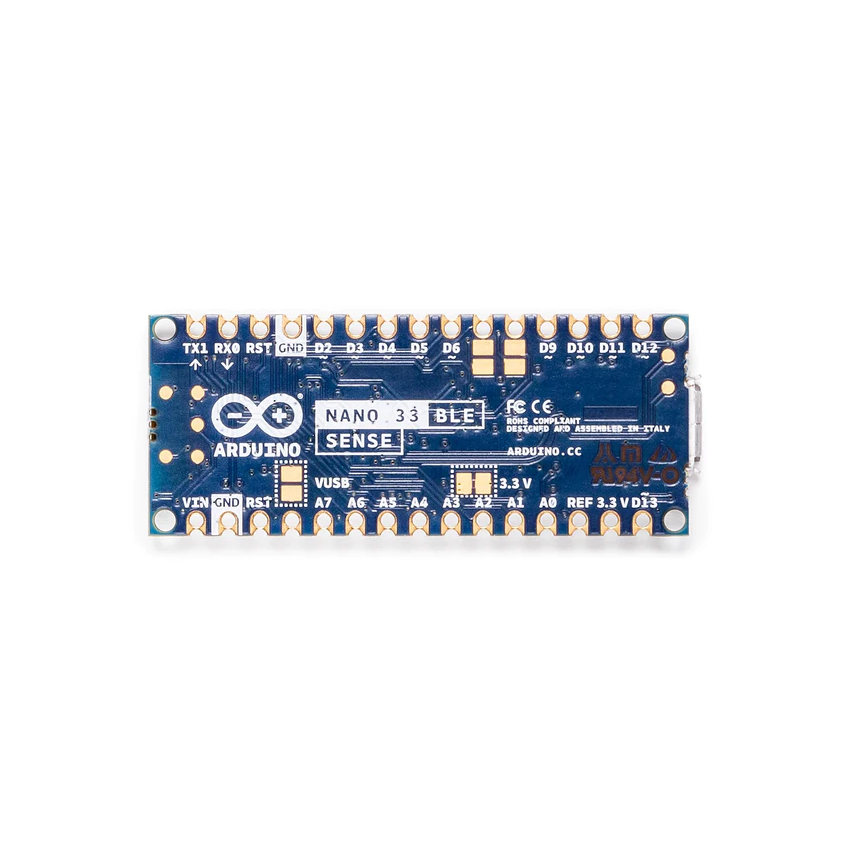

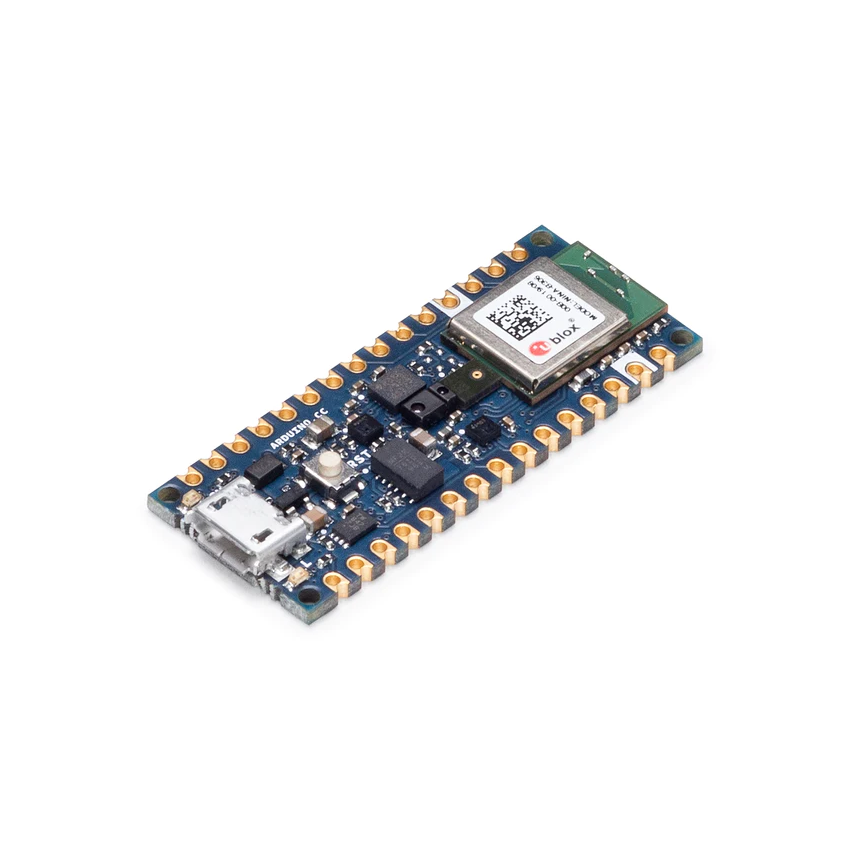

The Arduino Nano 33 BLE Sense (ABX00031) is a compact and powerful development board that integrates a variety of sensors and capabilities, making it ideal for projects involving embedded machine learning, environmental sensing, and Bluetooth® Low Energy communications. Here's a summary of its detailed technical specifications:

• Microcontroller: nRF52840 from Nordic Semiconductor.
• Operating Voltage: 3.3V.
• Input Voltage (limit): 21V.
• DC Current per I/O Pin: 15 mA.
• Clock Speed: 64 MHz.
• CPU Flash Memory: 1MB.
• SRAM: 256KB.
• EEPROM: None.
• Digital I/O Pins: 14, with all digital pins capable of PWM.
• UART: 1.
• SPI: 1.

Learning Resources:

Nano 33 BLE Sense Documentation

Applications and Projects:

The Arduino Nano 33 BLE Sense is an incredibly versatile board that combines a tiny form factor with a variety of sensors, making it ideal for a wide range of applications. Here are some specific use cases and applications for the Arduino Nano 33 BLE Sense:

• Wearable Devices: The board's form factor and sensor suite make it perfect for developing wearable devices. With AI capabilities, it can recognize movements, making it suitable for fitness trackers, health monitoring devices, or interactive clothing.
• Room Temperature Monitoring: The onboard temperature and humidity sensors allow for the creation of devices that monitor environmental conditions. Such a device could be used to suggest or even directly adjust a thermostat based on current readings, ideal for smart home applications.
• Gesture or Voice Recognition Devices: Utilizing the gesture sensor or the built-in microphone, you can create devices capable of recognizing specific gestures or voice commands. This capability can be further enhanced with the board's AI functionalities, enabling sophisticated interaction models for controlling various electronics or software applications.
• Edge Computing Applications with AI: The Arduino Nano 33 BLE Sense is built for embedded machine learning applications using TinyML and TensorFlow Lite. This allows for running AI models directly on the board, which can be applied in areas such as predictive maintenance, anomaly detection in data streams, or real-time audio processing for keyword detection.
• Environmental Sensing: Thanks to its comprehensive sensor suite, including sensors for measuring motion (IMU), proximity, color, and light intensity, as well as environmental conditions like temperature, humidity, and barometric pressure, the board is well-suited for environmental sensing projects. These could range from automated gardening systems to weather stations or air quality monitors.
