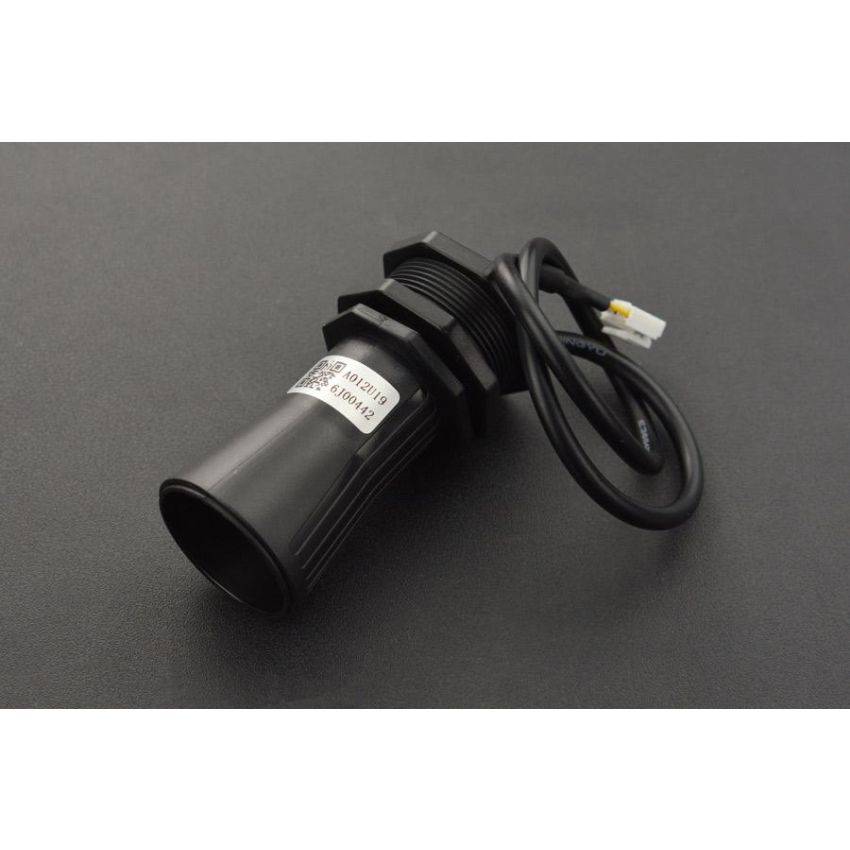

A02YYUW Waterproof Ultrasonic Sensor

SKU
STSx0409
Brand
Delivery in 2 Weeks.
Pre-Order
Only 16 left
Add to Wish List

Guarantee safe & secure checkout

Description :

- Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse.
- This is an easy-to-use commercial-grade ultrasonic sensor module of high performance and reliability, featuring much smaller blind zone, wider sensing angle and a certain penetration power(smog, dust) compared with other similar sensors .
- The ultrasonic sensor adopts closed separated probe, waterproof and dustproof, which could be well suitable for harsh and moist measuring environments.
- All the signal processing units are integrated inside the module, so users can directly obtain the distance value through Asynchronous Serial Interface. With 9600 bit/s band rate, the sensor can easily communicate with upper-host or other MCU, which greatly shortens the developing cycle for users.
-Use the sensor with Arduino controller to build up your projects, such as backing car annunciator, obstacle avoidance robot, object approaching detection etc.



- Specifications:



•Operating Voltage: 3.3~5V
•Average Current: <8mA
•Blind Zone Distance: 3cm
•Detecting Range(Flat object): 3-450cm
•Output: URAT
•Response Time:100ms
•Operating Temperature: -15~60℃
•Storage Temperature: -25~80℃
•Reference Angle: 60º
•Waterproof Grade: IP67

More Information
Brand DFRobot
GTIN 1,
Current Consumption 8mA
