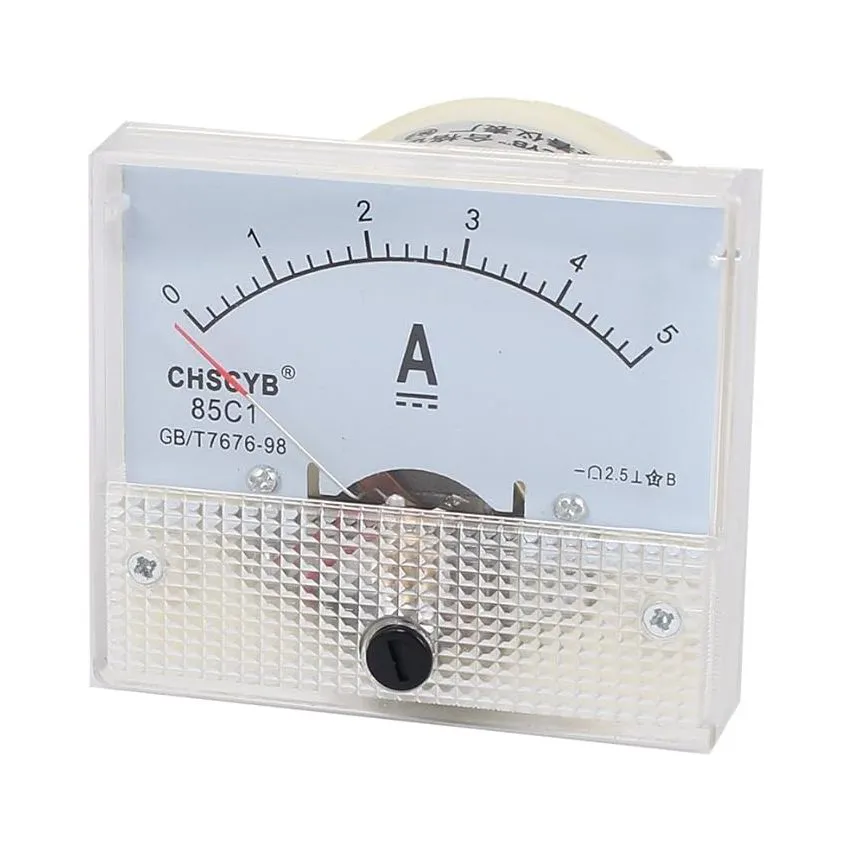

5A pointer DC analog ammeter 85C1 series analog AMP meter

Specifications:

• Model number : 85C1 series
• Accuracy level : 1.5/2.5 level
• External dimensions : 64x56x60 mm
• Matched shunt : FL-2
• Resistance to mechanical forces : Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
• Dielectric strength : 2KV 50Hz for 1min
• Voltage affection : The measured tolerance don't exceed base tolerance when the measured value changed 15%
• Work position : Vertical
• Operating temperature : -20 to 50 ℃
• Operating humidity : 85% RH max, non-condensing
• Net Weight : 70g
