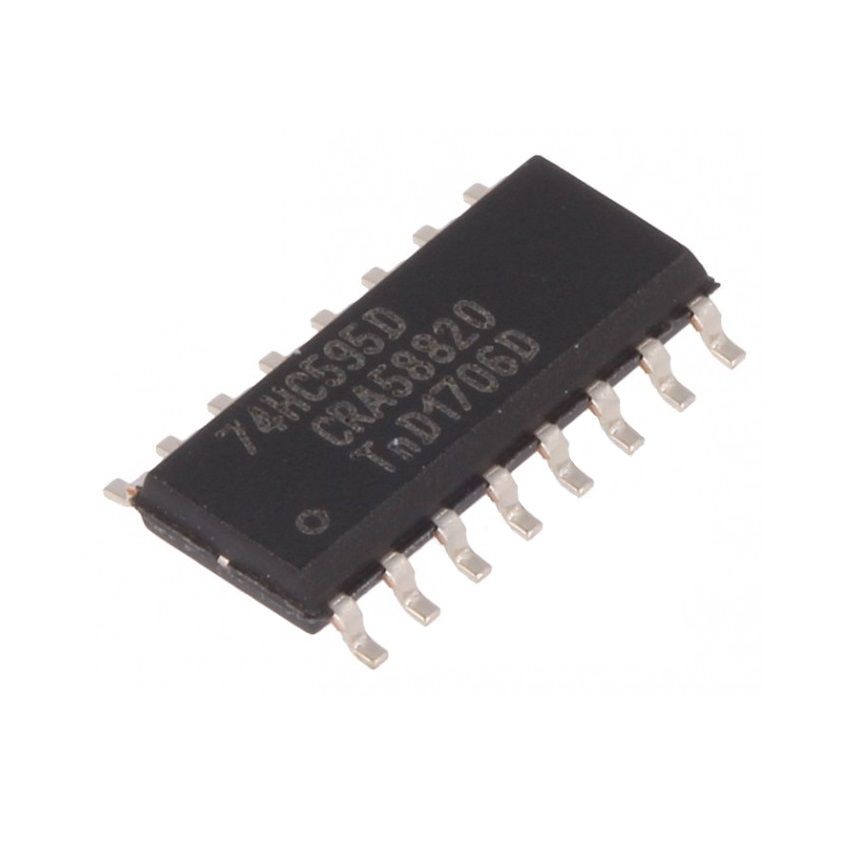

74HC595D,8-Bit Shift Register with 3-State Output,SMD

The 74HC595D is a high-speed 8-bit shift register IC designed for data storage and transfer. It efficiently converts serial data to parallel data, which is ideal for applications such as LED displays, digital counters, and control circuits. With its three-state output capability, it can be connected directly to an 8-bit bus, allowing parallel output stability during shift operations. The device low power dissipation and static discharge protection make it a robust choice for various digital applications.

• High-Speed Performance: Designed with CMOS technology to achieve high-speed operation up to 55 MHz.
• 8-Bit Shift Register/Latch: Contains an 8-bit static shift register feeding an 8-bit storage register for effective data handling.
• Wide Operating Voltage: Compatible with voltage ranges from 2.0V to 6.0V, making it versatile for different circuit requirements.
• Low Power Dissipation: Ensures efficient operation with a maximum ICC of 4.0 uA at room temperature.
• 3-State Outputs: Allows for direct connection to 8-bit bus systems, suitable for complex digital applications.
• Flexible Pin Configuration: Built in a compact SOIC-16 package for space-saving designs.
