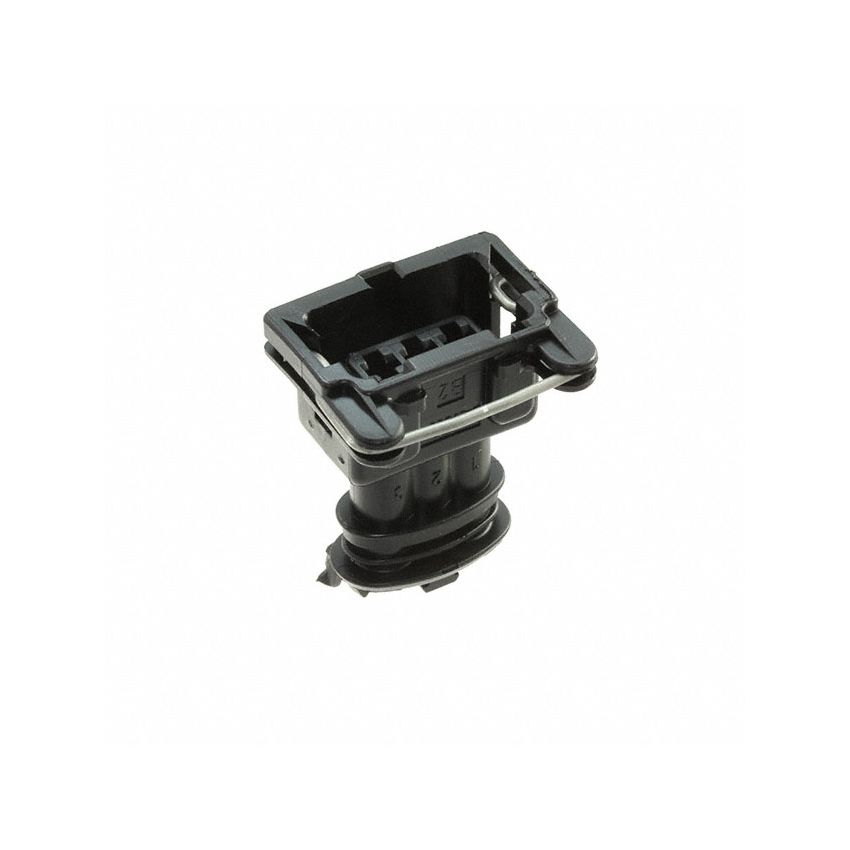

Connector & Housing Type : Housing for Female Terminals
Mating Tab Width : 2.8 mm [ .11 in ]
Connector System : Wire-to-Board, Wire-to-Device
Number of Positions : 3
Centerline (Pitch) : 5 mm [ .197 in ]

Specifications:

Number of Positions : 3
Number of Rows : 1
Operating Voltage (VDC): 24
Nominal Voltage Architecture (V): 12, 24
Cable Exit Angle : 180°
Primary Product Color : Green
Contact Type : Receptacle
Contact Size : 2.8mm
Mating Tab Width : 2.8 mm [ .11 in ]
Mating Alignment : With
Mating Alignment Type : Polarization Slot
Strain Relief : Without
Connector Mounting Type : Cable Mount (Free-Hanging)
Terminal Position Assurance : No
Product Length : 30.4 mm [ 1.197 in ]
Product Width : 24.5 mm [ .965 in ]
Connector Height : 38.4 mm [ 1.512 in ]
