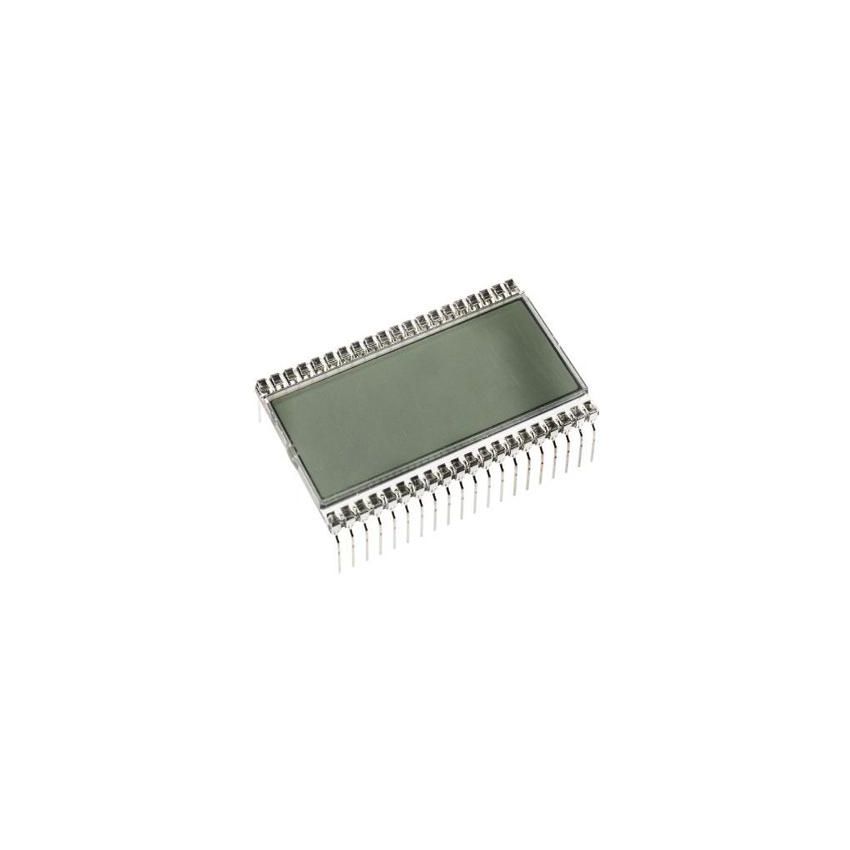

The LCD (liquid crystal display) uses the standard 7-segment format with inter-digit decimal points and alterN/Ate inter-digit colons. The black segments appear against a silver background for ease of reading and it has a wide viewing angle for versatile use. The unit is supplied as a flat glass plate with rigid pins in a dual in line (DIL) package format, which is a rectangular housing with two parallel rows of electrical connecting pins.
This digital display is ideal for a wide range of battery-operated applications. Note that it's important to take anti-static precautions when storing or handling LCD modules of this type.

Features and Benefits

• TN display matrix technology
• Transflective display mode
• 7-segment display type
• Single row of characters
• Four characters per row
• Character dimensions of 12.7 (H) x 7 mm (W)
• Viewing area dimensions of 18.8 (H) x 47 mm (W)
• ExterN/Al dimensions of 30.5 (H), 50.8 (W) x 2.9 mm (D)
• Grey background colour
• Black illumiN/Ation colour
• Operating temperature range of -30°C to 80°C

Specifications:

Display Type: 7-Segment
Character Matrix: 1 Row by 4 Characters
Character Rows : 1
Characters per Row: 4
Character Height: 12.7mm
Character Width: 7mm
Viewing Area Width: 47mm
Viewing Area Height: 18.8mm
Viewing Area Dimensions: 47 x 18mm
ExterN/Al Depth: 2.9mm
Background Colour: Grey
IllumiN/Ation Colour: Black
ExterN/Al Width: 50.8mm
ExterN/Al Dimensions: 50.8 x 2.9 x 30.5mm
ExterN/Al Height: 30.5mm
Display Matrix Technology: TN
Display Mode: Transflective
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -30°C
Operating Temperature Range: -30 → 80°C
Series: PHT
