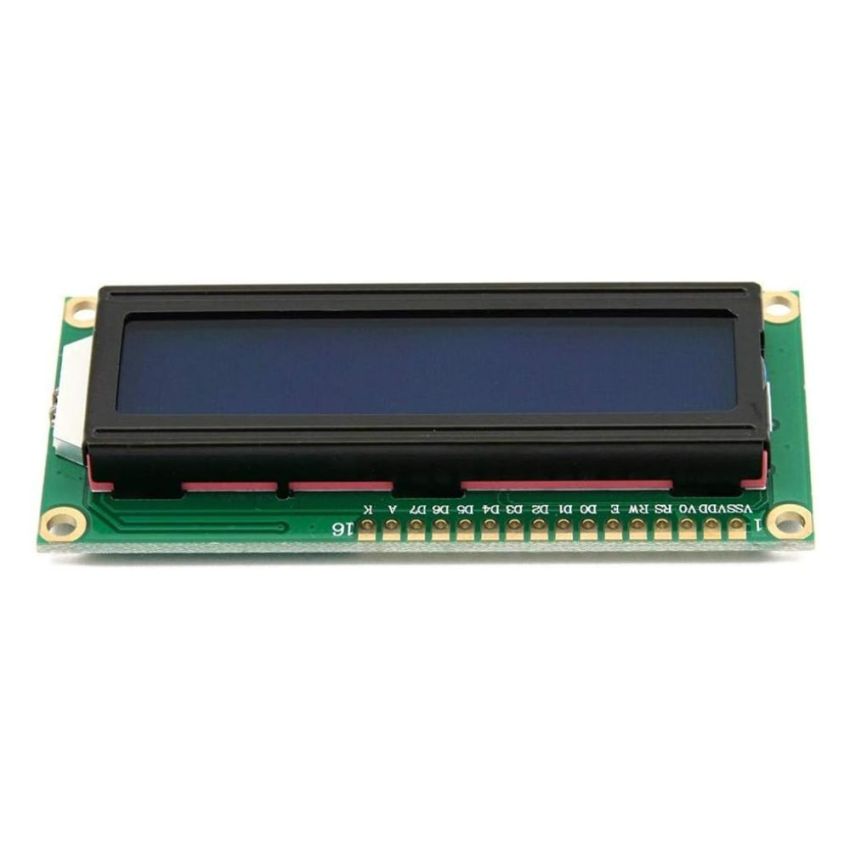

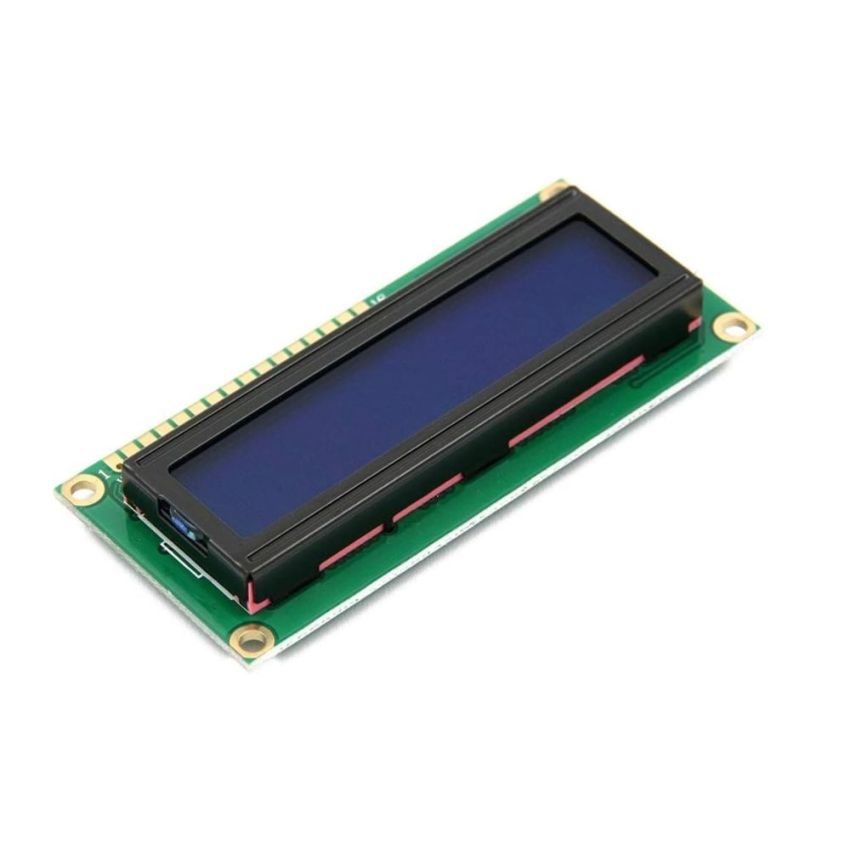

16X2 LCD BLUE

SKU
ODDX0016
Brand
In stock
Add to Wish List

Guarantee safe & secure checkout


-16 characters wide, 2 rows
-White text on blue background
-Connection port is 0.1" pitch, single row for easy breadboarding and wiring
-Pins are documented on the back of the LCD to assist in wiring it up
-Single LED backlight included can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
-Can be fully controlled with only 6 digital lines! (Any aN/Alog/digital pins can be used)
-Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
-Up to 8 extra characters can be created for custom glyphs or 'foreign' language support
-Comes with necessary contrast potentiometer and strip of header
