DESCRIPTION:

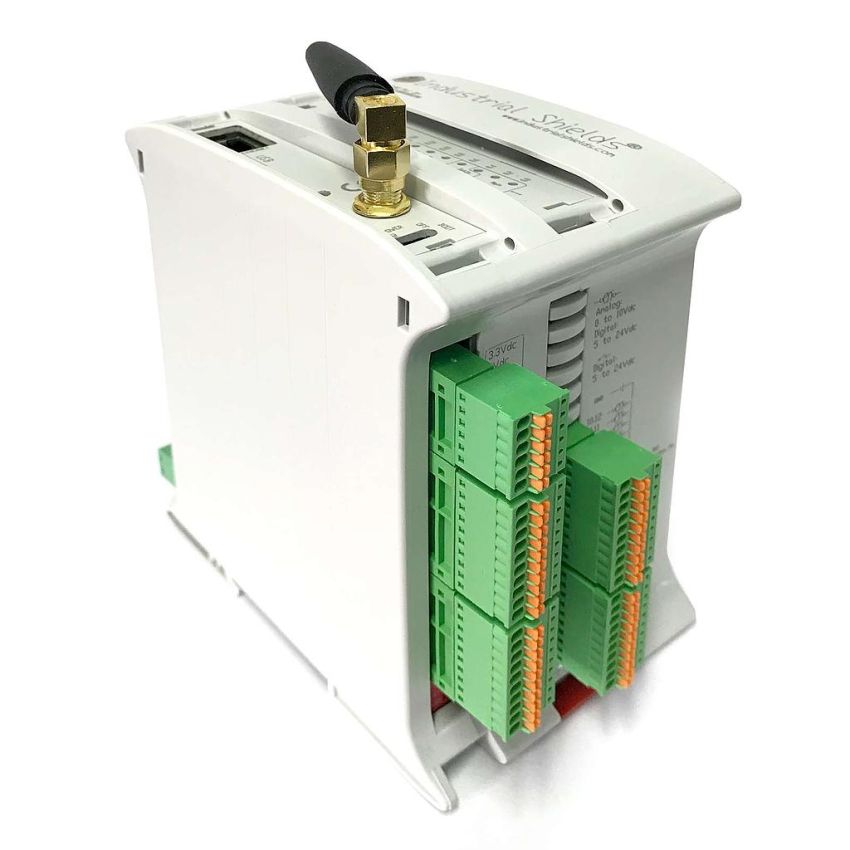

- Modular PLC
This is the first equipment based on the ESP32 technology designed for a professional use. This PLC has 21I/Os. It also contains several communication ports which provide more flexibility and control. The ESP32 family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

- Programming Software
This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

- Instantaneous connection and coding
The ESP32 PLC is programmed through the USB ports. This PLC can also be programed through Ethernet port remotely. This offers and immediate access to program, mantain and control. Also you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox and the Touchberry Pi with instantaneous connection.

- Inputs/Outputs
Digital Input x7
Analog Input x6 (Note 4
Interrupt Input x2 (Note 5)
Digital Output x5
Analog/Dig. Output x3 (Note 6)
In/Out 5Vdc x2 (Note 7)

- Communications
Serial TTL (UART) x2 (note 11)
I2C x1 (note 12)
RS232 x1
RS485 x1
Ethernet x1
Wi-Fi & BLE x1
