Description :

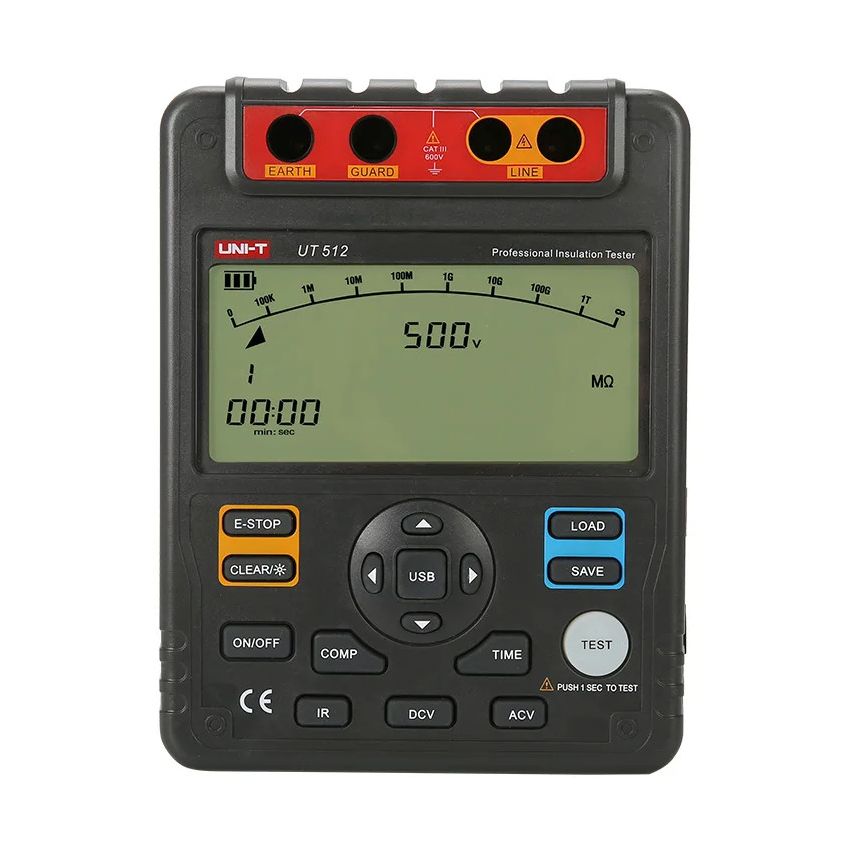

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software.

Features:

• Certifications: CE, UKCA
• Large 9999 display with 30-segment analog bar graph
• PI/DAR measurements
• Comparison, upper and lower limit functions
• Continuous measurement mode
• Auto power off
• 18-group data storage
• Backlight
• Auto current discharge and high-voltage output alarm
• Time measurement mode, auto measure within 15 minutes
• Low battery and over-range indications

Specifications:

• Power 1.5V battery (LR14) x 8
• Display 123mm x 58mm
• Product color Red and grey
• Product net weight UT511: 1.2kg; UT512: 1.8kg; UT513A: 2kg
• Product size 202mm x 155mm x 94mm
• Standard accessories 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USB cable , PC software CD, power adaptor
• Standard individual packing Gift box, tool box, English manual
