Features:

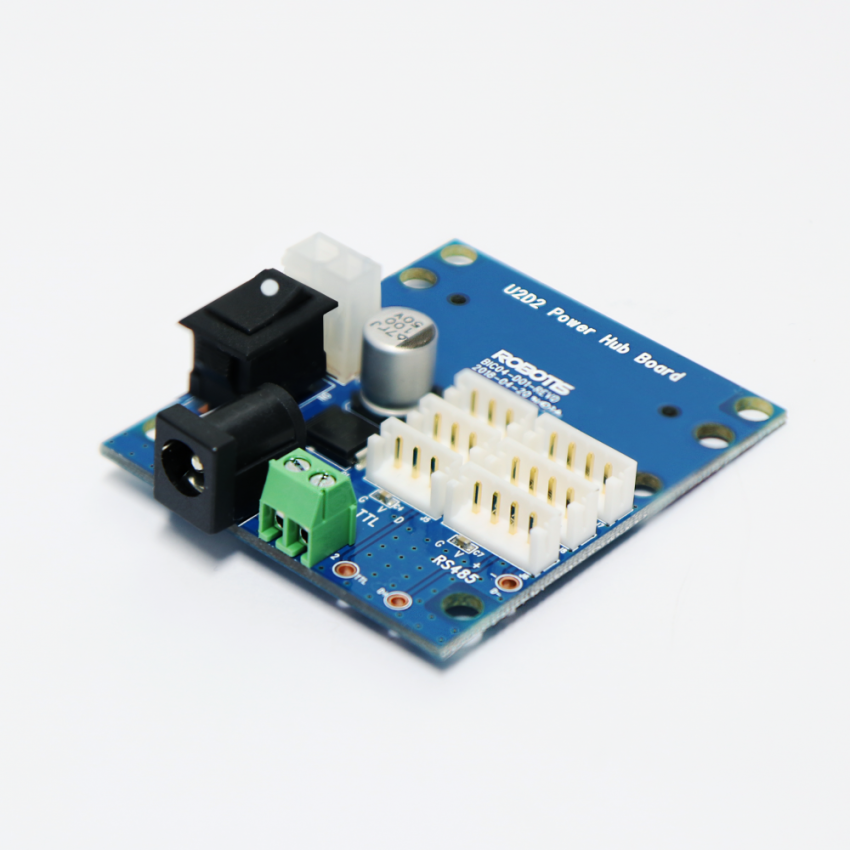

• The U2D2 Power Hub Board combines with the U2D2 to supply a variety of external power sources to DYNAMIXELs.
• The board is capable of supplying power to all DYNAMIXELs with the SMPS port, terminal block, and 2P power connector.
• The board has holes to fix the U2D2 module and can be assembled using the rivets supplied in the package.
• Easily powers ON/OFF with the power switch
• Robot cable for connecting U2D2 is included.
• U2D2 is not included.

Specifications:

• Dimension 48mm x 57mm
• Operating Voltage 3.5V ~ 24.0V
• Max Current 10.0A

Compatible Products :

DYNAMIXEL AX/MX-Series, PRO-Series
- Use the Molex-JST Convertible Cable (Use 3P or 4P based on your communication selection)

DYNAMIXEL X-Series, P-Series :

• Use the JST Cable. (Use 3P or 4P based on your communication selection)
The U2D2 PHB only has a JST type connector and requires a convertible cable when connecting to Molex type connectors.
• Required cables: Min 2pcs (U2D2 <-> DYNAMIXEL, U2D2 PHB <-> DYNAMIXEL)

Package Components

U2D2 Power Hub Board 1
Rivet (For U2D2 assembly ) 1
NUT M3 4
Support M3x10x6 4
Robot Cable-X3P 100mm 1
Robot Cable-X4P 100mm 1
