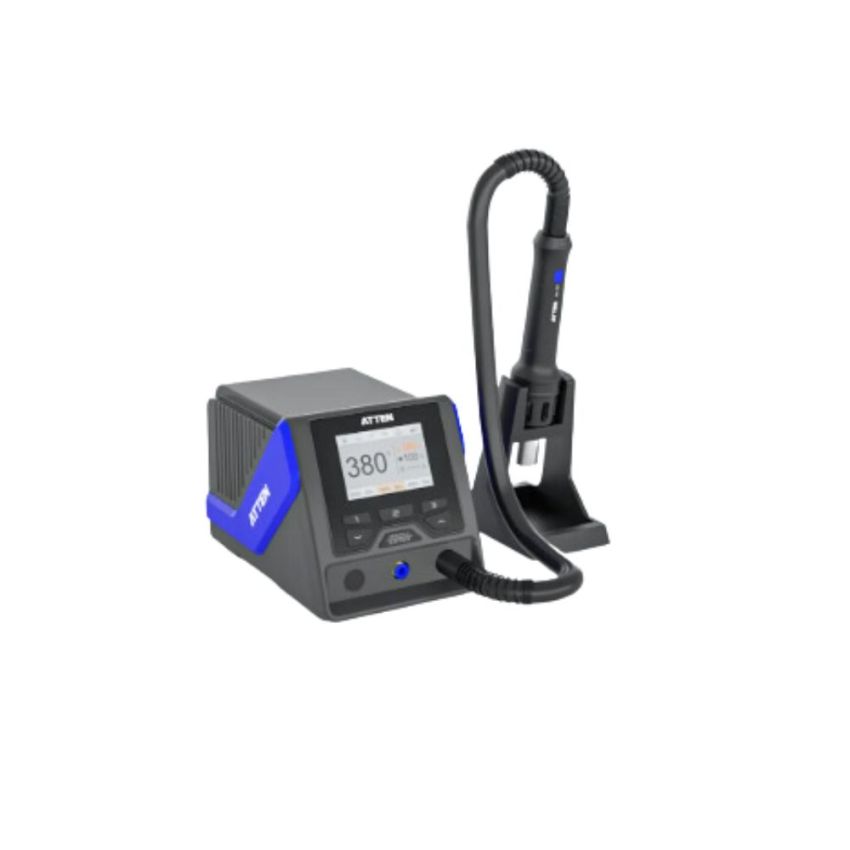

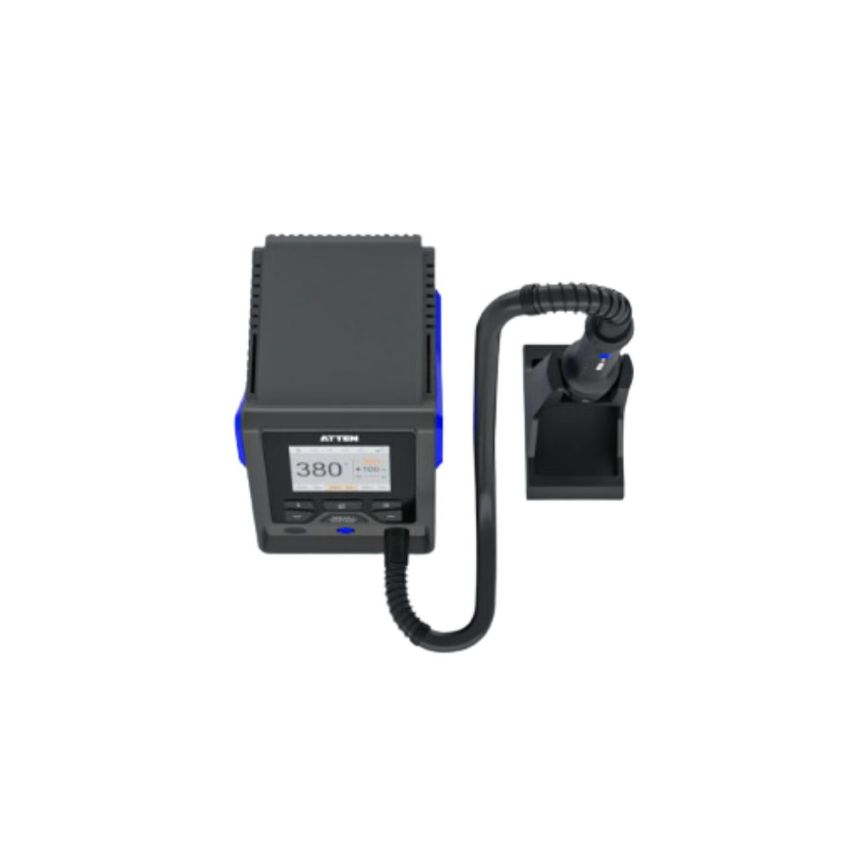

GT-8100A, ATTEN IoT Hot Air Rework Station

The GT-8100A Intelligent Hot Air Station is a versatile and high-performance tool equipped with advanced features like a 1300W ceramic heater, PID temperature control, and a big TFT color screen for seamless parameter monitoring and setting. Ideal for precise and efficient operations in professional environments.

• 3 shortcut settings for air volume and temperature for simplified operations.
• Built-in brushless fan for low noise and long service life.
• Adjustable timing: 10~900s (can be turned off).
• Password protection to secure settings (off by default).
• Large TFT color screen for convenient parameter setting and monitoring.
• Temperature adjustment: Long press for 10 units, short press for 1 unit.
• PID algorithm provides accurate and stable temperature control.
• Multi-language interface: Chinese/English.
• Heating power displayed using 5 dynamic power bars.
• Infrared temperature calibration function for precision.
• RS485 communication interface with IoT functionality.
• Air volume adjustment: Long press for 2 units, short press for 1 unit.
• User temperature compensation: ±50℃ / ±90℉.
• Supports temperature curve setting.
• Fuse: T8A (AC 250V) / T12A (AC 125V).
• Air volume range: 1%~100%, with a maximum airflow of 120L/Min.
• Rapid temperature, air volume, and time: 3 groups of temperature/air volume/time can be called quickly.
• Alarm function (on by default).
• Temperature range: 100℃~500℃ / 212℉~932℉.
• 1300W pluggable ceramic heater ensures fast heating.
• Support External pedal control.
• Working conditions: Temperature 0℃~40℃, Relative humidity ＜85%RH.
• Support control the switch on and off of the smoke purifier.
• Temperature unit: ℃/℉, default ℃.
• Multiple alarm and protection functions, including heater open circuit alarm, sensor fault alarm, zero crossing signal alarm, SCR damage alarm, and over-temperature protection alarm.
